Swing Beam Shear Crocodile Shear Metal Cutting Guillotine

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Motor, Pump

Warranty Period: 1 Year

Type Of Machine: Alligator Hydraulic Shears

Machinable Material: Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel

Core Selling Point: Long Service Life

Out-of-warranty Service: Video Technical Support, Online Support

Applicable Industry: Building Material Shops, Manufacturing Plant, Construction Works, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Certification: ISO, CE

Labor Required: 1~2

Cutting Force: 120~800ton

120~800ton: Automatically

Automatically: 800~1200mm

Cutting Material: Pipes,Profile,Tubes,Plate,

Final Metal Size: Adjustable,as Per Requirement

Adjustable,as Per Requirement: Energy Saving and Environmental Protection

PLC Brand: Siemens, Mitsubishi or Customized

Usage: Metal Scrap Cutting

Additional Info

Packaging: wooden case,wire locking,nude packing,plastic film

Productivity: Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000 sets/year

HS Code: 8462390000

Port: Shanghai port

Product Description

Swing Beam Shear Crocodile Shear Metal Cutting Guillotine

Overview:

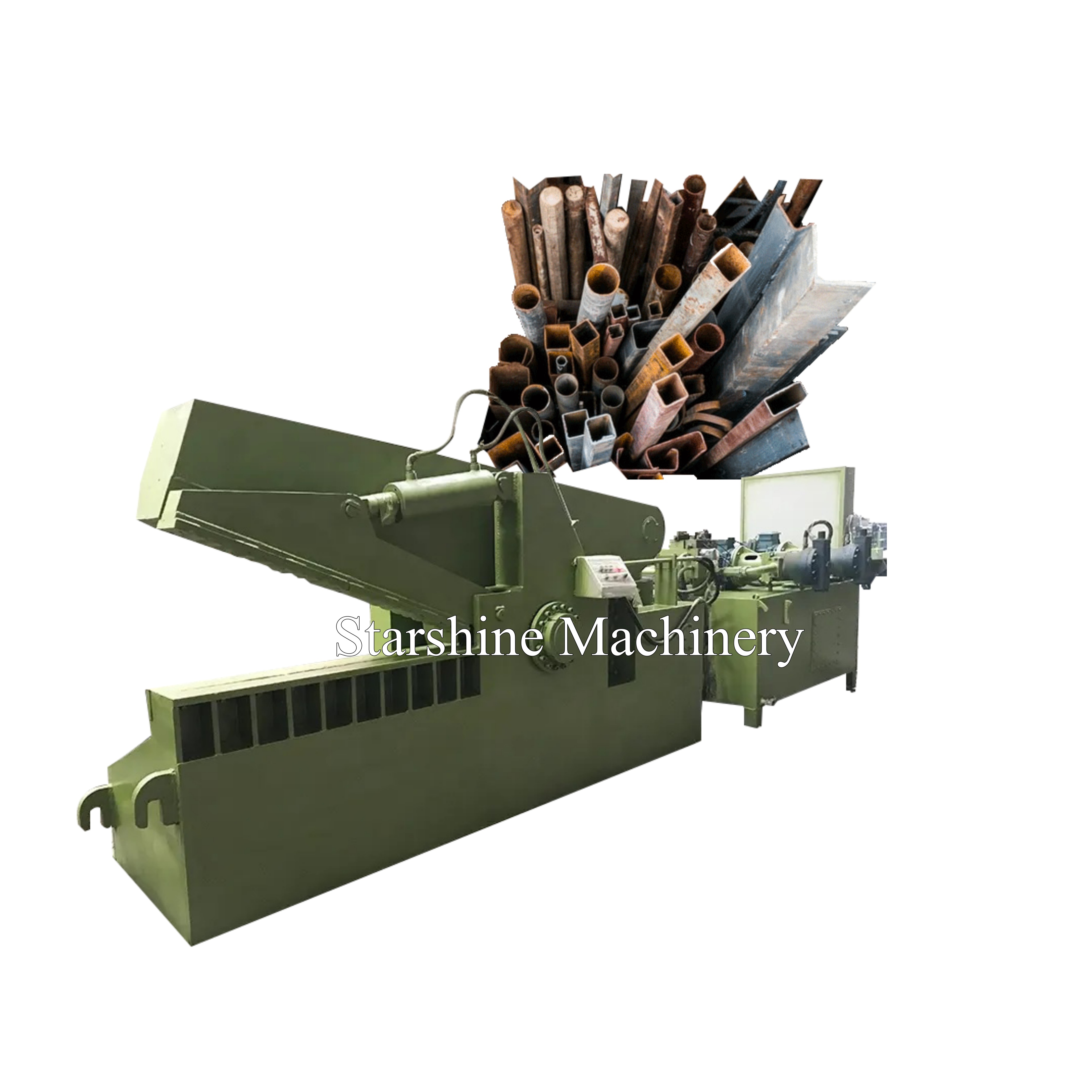

Metal crocodile hydraulic shear, i.e. crocodile shear, is a hydraulically driven metal shearing equipment, named for its structural principle similar to the upper and lower jaws of a crocodile.

Working principle:

Metal crocodile hydraulic shear consists of a shear cylinder, shear knife, slider press fit knife, lower knife seat, press fit cylinder and so on. Cutting operation, the hydraulic pump station as a power source, first to the pressure cylinder oil supply, so that the slider press knife pushed to the lower knife seat to complete the fixed material compression, and then to the shear cylinder oil supply to make the shear knife down to complete the shear steps. After the shear is completed, the hydraulic pump station drives the shear cylinder and press cylinder to return the hydraulic oil successively to complete the return movement.

Features:

1. Power and performance advantages: the use of hydraulic transmission, compared with the mechanical transmission type shearing machine, has a small size, light weight, low inertia, low noise, smooth movement, easy to operate, flexible, large shear section, easy to adjust the scissors mouth, etc., the operation of the use of safe and easy to achieve overload protection.

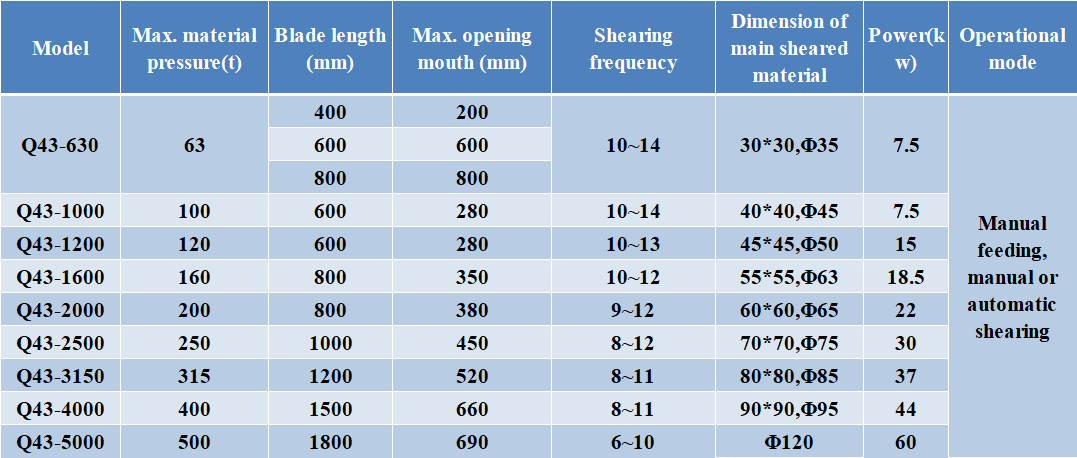

2. Various shearing capacity: the length of working cutter is 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, etc., and the shearing force is from 63 tonnes to 400 tonnes in total 8 grades, which can satisfy different shearing needs.

3. Flexible installation and power selection: no foot screws are required for installation, and diesel engine can be used as power in places without power supply.

4. Convenience of operation: with manual and automatic functions, the shear mouth can cut and stop at any position during the working process, and the size of the shear mouth can be controlled arbitrarily according to the size of the material to be sheared in order to achieve high working efficiency.

Scope of application:

1. Metal recycling industry: it is suitable for metal recycling companies to carry out cold shearing on various shapes of steel profiles and all kinds of metal structures, and process the scrap metal into smaller pieces for subsequent transport and reprocessing.

2. Scrap Steel Processing: It can be used by scrap mills to shear scrap steel and process it into qualified furnace material.

3. Smelting and casting enterprise: It is used to shear the metal scrap into suitable size so as to put it into the furnace for smelting and casting.

4. Scrapped car dismantling: shears with a cutter of 700mm or more are especially suitable for shearing scrapped cars.

5 Industrial production of metal processing: can be used in the industrial production process shear metal edges, such as rolling mills of various steel sizing cut.
