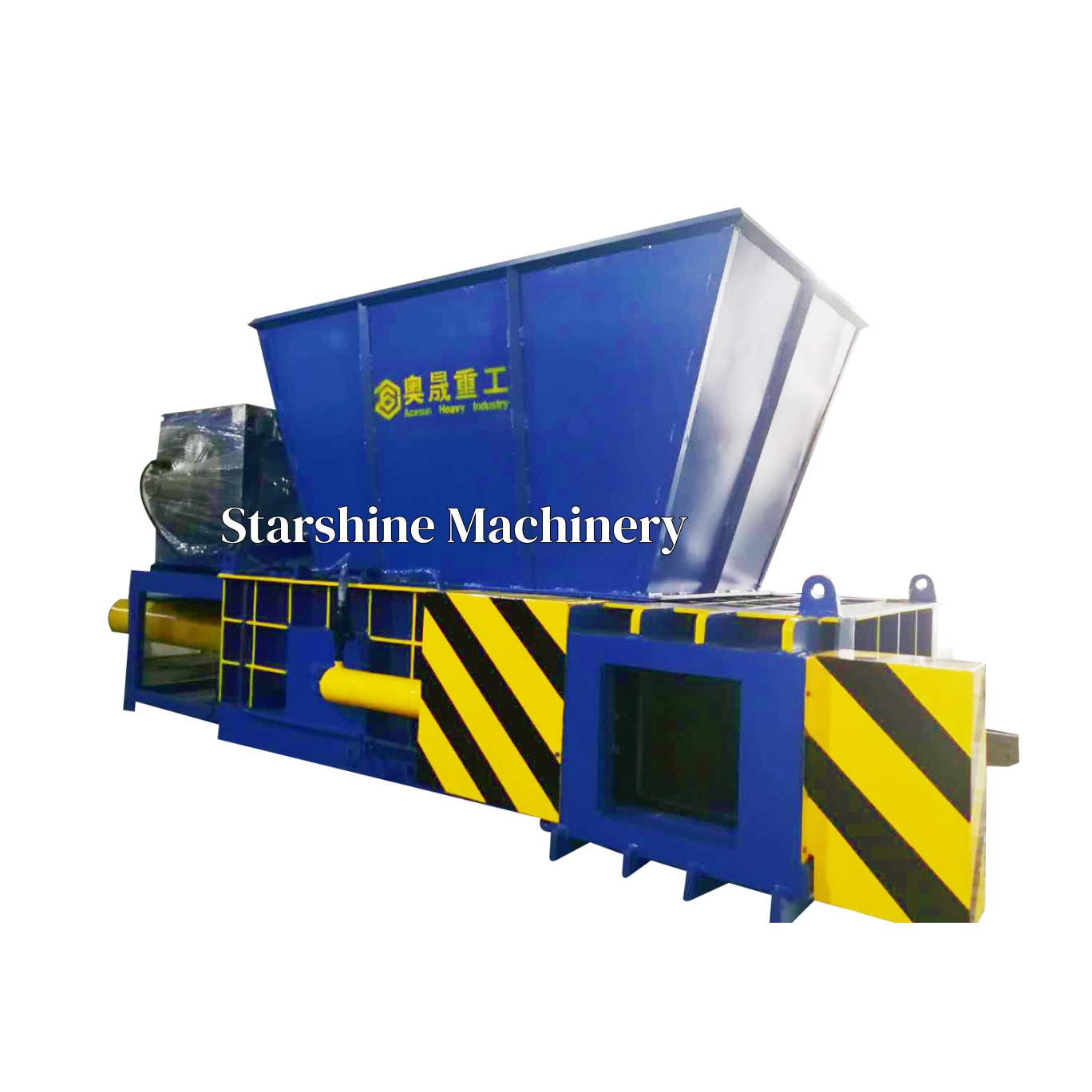

Aluminum Compactor Industrial Aluminum Can Compactor
1. Hydraulic Drive: A strong pressure is generated by the hydraulic system to drive the piston movement of the hydraulic cylinder, which gradually compresses the scrap metal placed inside the hopper into a compact block. For example, Enptech AMB-H series funnel-type
Scrap Metal Baler is to use hydraulic principle to press the metal chips into cake shape.
2. Automatic feeding: Using the shape of the funnel and gravity, scrap metal is poured from the top of the funnel and automatically slides down to the compression chamber. Some advanced funnel type scrap metal balers are also equipped with automatic feeding device, such as conveyor belt or screw pusher, which can realize continuous feeding and improve the baling efficiency.
1. Funnel part: usually made of stainless steel or high-strength carbon steel, with a large opening area to facilitate the pouring of scrap metal, the shape of the funnel is designed to guide the scrap metal to slide down smoothly into the compression chamber.
2. Compression chamber: the area where the scrap metal is compressed, welded by high-strength steel plate, with high strength and wear resistance, able to withstand the enormous pressure exerted by the hydraulic system.
3. hydraulic system: including hydraulic pumps, hydraulic cylinders, hydraulic valves and other components, hydraulic pumps will be hydraulic oil pressurized and transported to the hydraulic cylinders, pushing the piston movement, to achieve the compression of scrap metal, hydraulic valves are used to control the flow direction of the hydraulic oil and the size of the pressure.
4. Control system: manual control or PLC automatic control can be used, manual control mode operation is simple, suitable for small enterprises or low production occasions; PLC automatic control mode can realize automated operation, improve work efficiency and baling quality, but also can set different parameters, such as compression pressure, compression time and so on.
1. Efficient and continuous operation: it can realize continuous feeding through hopper, with the fast compression action of hydraulic system, it can greatly improve the efficiency of scrap metal baling and reduce the time and labor intensity of manual feeding.
2. High compression ratio: it can compress the huge volume and irregular shape of scrap metal into high density and regular shape blocks, which effectively reduces the volume of scrap metal and facilitates storage, transportation and subsequent processing.
3. Strong applicability: it can be applied to various types of scrap metal, such as iron scraps, aluminum scraps, copper scraps, scrap steel, scrap electrical shells, etc. It is widely used in metal recycling and processing industry, metal smelting industry and so on.
4. Energy saving and environmental protection: During the compression process, it can squeeze out the cutting oil, oil and other liquids from the scrap metal and collect them through the waste liquid collection box, avoiding the leakage and pollution of the liquids and also realizing the recycling and reuse of the cutting oil.
1. Metal recycling industry: It can pack all kinds of waste metals into blocks that are easy to transport and store, improve the recycling efficiency of metals and reduce the transportation cost, such as packing waste copper wires, copper sheets and other materials into compact bales and transporting them to smelters for reprocessing.
2. E-waste treatment field: help to effectively recycle and reuse metal materials in waste electronic products, such as copper, aluminum, etc., and reduce the pollution of e-waste to the environment.
3. metal processing enterprises: metal profile factories, metal casting factories, sheet factories, gold pipe factories, etc. will produce a large amount of metal edges and scrap during the production process, hopper type scrap metal baler can compress these scraps into blocks, realizing the recycling of resources and lowering the production cost.
Product Categories : Metal Baler > Aluminum Baler
