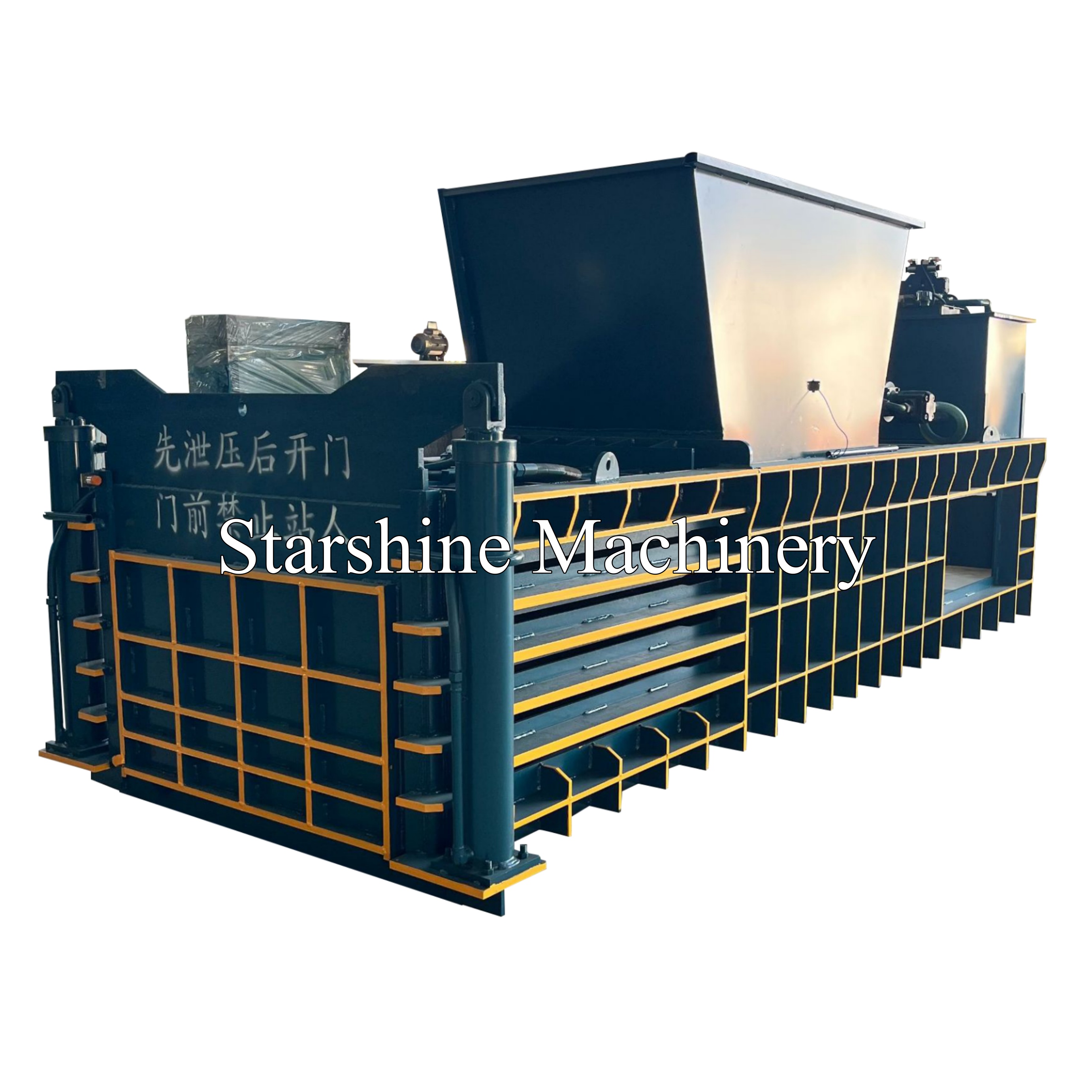

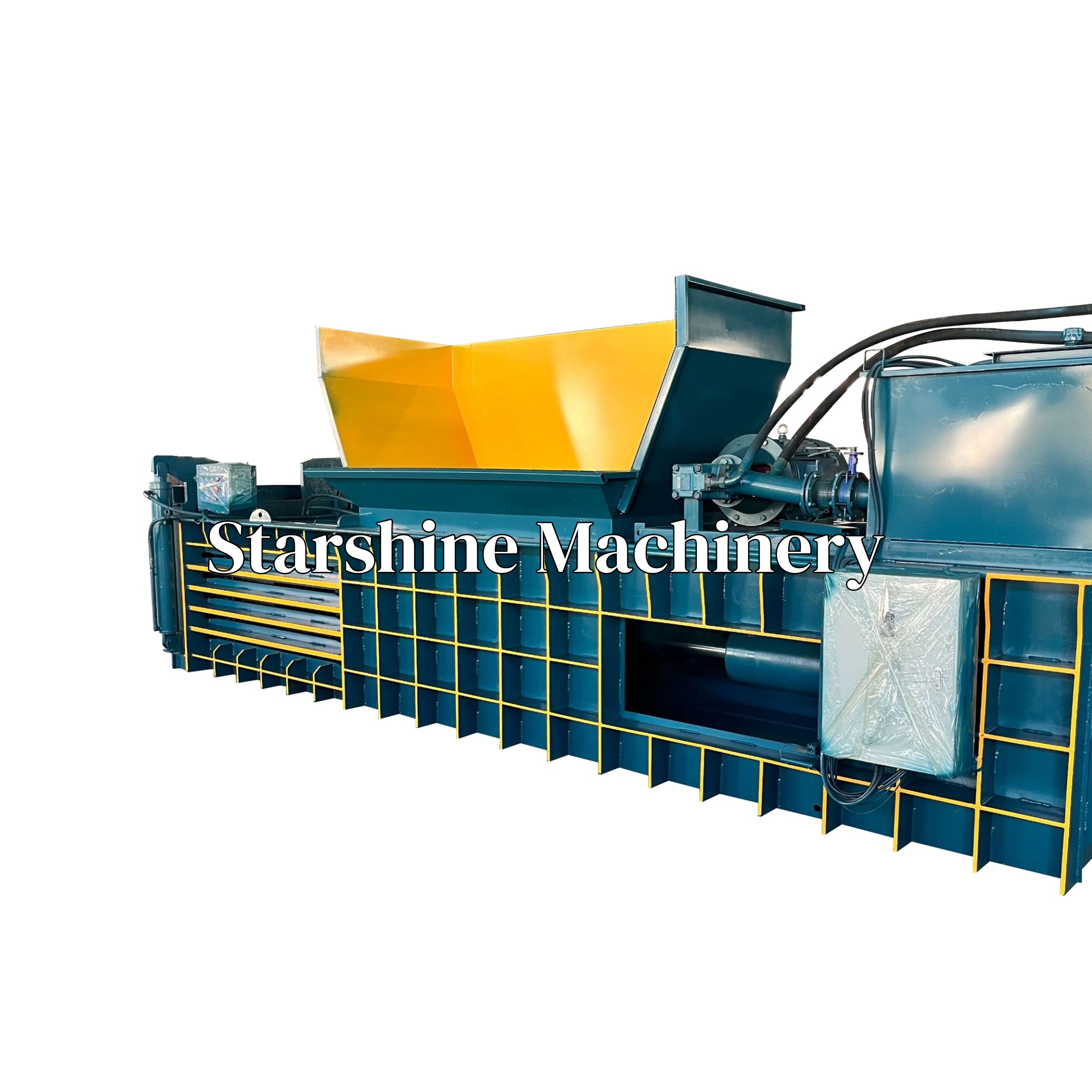

Cardboard Pressing Baler Horizontal Baling Machine
Working Principle:
Waste Paper Baling Press usually consists of motor as the power source, which transmits the power to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the compression rollers through the gear box, chain and so on. When the waste paper board enters between the upper and lower press rollers through the conveyor belt, it will be held by the press rollers and sent into the compression chamber at a certain speed, and then driven by the hydraulic system, the press plate extrudes and compresses the waste paper board, so as to reduce its volume greatly, and finally the compressed waste paper board will be bundled and shaped automatically through the bale system and the bale will be pushed out.
Structure Composition:
1. Mechanical system
Frame: it is the support structure of the whole equipment, which is usually welded with high-strength steel, with good rigidity and stability, able to withstand the huge pressure in the baling process.
Pressure mechanism: including hydraulic cylinders and pressure plate, hydraulic cylinders to provide power to promote the pressure plate on the waste paper board compression, pressure plate design usually ensures uniform pressure, so that the waste paper board compressed more tightly.
Feeding mechanism: can be conveyor belt or artificial feeding port, used to waste paperboard transported to the compression chamber, conveyor belt feeding method can realize continuous feeding, improve work efficiency.
Discharging mechanism: there are different ways to turn over the bag, push the bag (side and front push) or manually pick up the bag, etc., to push out the baled waste paper board package from the compression chamber.
2. Control system: generally adopts PLC automatic control or manual control mode, which can realize the precise control of each action of the baler, such as feeding, compression, bale bundling, discharging, etc. It is also equipped with touch-screen or push-button operation interface, which is convenient for operators to carry out parameter setting and equipment monitoring, and at the same time, it has an automatic alarm program, which can remind operators to carry out overhauling in a timely manner when there is a fault in the equipment.
3. Power system: mainly composed of motor and hydraulic system, the motor provides power for the hydraulic pump, the hydraulic pump will be hydraulic oil pressurized and transported to each hydraulic cylinder, to achieve the pressure, feeding and other actions, the hydraulic system usually uses cartridge hydraulic valve group, with a large flow rate, fast speed, and H-type interface with a taper articulation, it is not easy to leak oil.
4. Bale system: including the wire feeding mechanism, stranding mechanism, etc., the selection of high-strength quenched wire or plastic rope, etc. on the compressed waste paperboard for bundling, to ensure that the package will not be loose in the transportation and storage process.
Waste Paper Baling Press
Advantages:
1. High efficiency: Horizontal structure can be equipped with conveyor belt feeding, which can realize continuous feeding, and the automatic strapping function quickly improves the baling speed, which greatly improves the working efficiency, and is suitable for baling treatment of a large number of waste paper boards.
2. Large compression force: Compared with vertical baler, horizontal waste paperboard baler has larger compression force, which can compress the waste paperboard into smaller volume and reduce transportation cost and storage space.
3. Simple operation: both push-button operation and PLC control are designed to be simple and easy to understand, and the operator can master it after simple training, which reduces the technical requirements for the operator.
4. good stability: the use of high-quality materials and advanced manufacturing process, the mechanical structure of the equipment and the hydraulic system have good stability, can be a long time stable operation, reduce the failure rate, improve work efficiency.
5. Wide range of application: not only applicable to the baling of waste cardboard, but also can be used to deal with a variety of waste products such as plastic bottles, metals, cans, etc., with strong versatility.
Cardboard Recycling Baler is mainly applied to various waste paper mills, second-hand goods recycling companies, paper mills and other units and enterprises, and is used for the baling and recycling of paper products such as waste cardboard and cartons...
| Model | JPW80QT | JPW100QT | JPW120QT | JPW150QT |
| Hydraulic power | 80Ton | 100Ton | 120Ton | 150Ton |
| Packaging size(W*H*L) | 1100*800*(300-1800)mm | 1100*1000*(300-2000)mm | 1100*1100*(300-2100)mm | 1100*1100*(300-2100)mm |
| Feed opening size(L*W) | 1650*1100mm | 1800*1000mm | 2000*1100mm | 2200*1100mm |
| Bale density | 450-550Kg/m3 | 500-600Kg/m3 | 550-650Kg/m3 | 600-750Kg/m3 |
| Bale line | 4 line | 4 line | 5 line | 5 line |
| Capability | 4-7Ton/Hr | 7-10Ton/Hr | 8-13Ton/Hr | 10-16Ton/Hr |
| Power | 37KW/50HP | 55KW/75HP | 67KW/90HP | 93KW/124HP |
| Machine size(L*W*H)mm | 7900*3500*2300 | 8900*4050*2400 | 9700*4330*2400 | 10000*4250*2500 |
| Machine weight | 11Ton | 13.5Ton | 17Ton | 20Ton |
