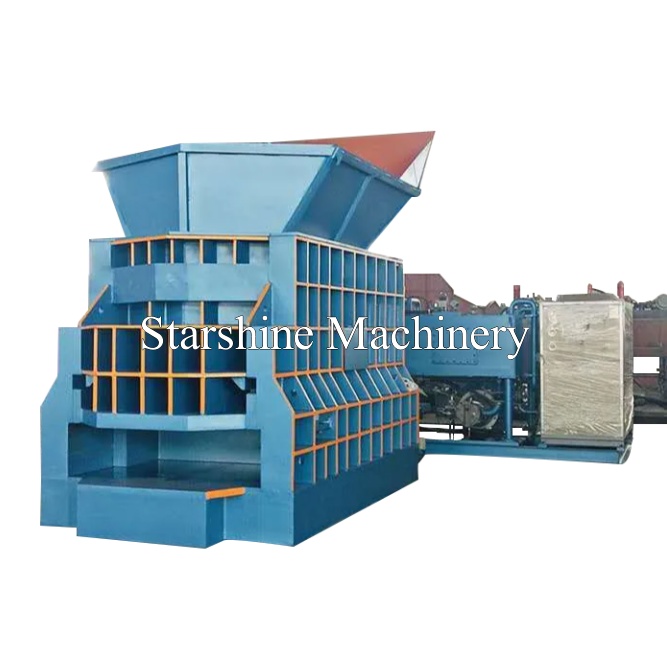

Hydraulic Iron Steel Scrap Metal Recycling Shear

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Motor

Warranty Period: 1 Year

Type Of Machine: Hydraulic Container Shears

Machinable Material: Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel

Core Selling Point: High Productivity

Out-of-warranty Service: Video Technical Support, Online Support

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Labor Required: 1~3 Labors

Energy Consumption: Energry Saving & Environmental Protection

1~3 Labors: Siemens,Mitsubishi,or Customized

Production: 5~15ton/Hrs

System Running: Stable and Safe

Commissioning: Fast and Low Cost

Application: Light Scrap Cutting

Cooling System: Options

Lubrication System: Automatically

Cutting Material: Light Bale or Scrap Metal

Additional Info

Packaging: wooden case,wire locking,nude packing,plastic film

Productivity: 5~15ton/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

Hydraulic Iron Steel Scrap Metal Recycling Shear

Features:

1. Overall structure: closed box-type structure, the hydraulic system, shear mechanism and other integrated in the box, compact layout. This design makes the equipment occupy a small space, the overall stability is good, can effectively resist the impact of the external environment on the internal components, such as dust, debris and other difficult to enter the key parts.Steel Sheet Cutter

2. Shear chamber: there is usually a relatively closed shear chamber, and the material is cut in the chamber, which can better control the splash and noise generated during the shear process, and improve the safety and comfort of the working environment.Steel Cutting Machine

3. Feeding method: Generally adopt top or side feeding, equipped with special feeding device, can realize automatic feeding, improve feeding efficiency and accuracy.

Performance characteristics:

1. Large and stable shear force: due to the advantages of structure and working principle, box shear can produce large and stable shear force, suitable for cutting large size, high strength metal materials, such as large waste steel beams, thick steel plates, etc.

2. High shearing accuracy: closed structure and fine pressure control, so that the box shear in the shearing process can better control the material position and shear size, high shearing accuracy, can meet the shear size requirements of strict occasions.Metal Cutting Machine

3. High degree of automation: It is often equipped with automatic feeding and discharging devices and advanced control systems, which can realize automatic continuous operation, reduce manual intervention, improve production efficiency and reduce labor intensity. But the complexity of the equipment is high, and the cost is relatively high.

Working Principle:

1. Pre-compression and shear step: After the material enters the shear chamber, the material is pre-compressed through the pre-compression device to make it compact, and then the shear knife is cut by the shear cylinder. This way of pre-pressing and shearing step, can make the shear force more concentrated, improve the shear efficiency and quality, especially suitable for the texture of loose or irregular shape of metal materials.Iron Sheet Cutting Machine

2. Fine pressure control: the hydraulic system can accurately control the pre-pressure and shear force through the complex oil circuit and control valve, and adjust the pressure parameters according to different material characteristics to ensure the shear effect.Scrap Metal Shear

Application Fields:

1. Large metal recycling: In large metal recycling plants, processing a large number of scrap metal, such as scrapped cars after dismantling large metal parts, scrap building steel, etc., can efficiently and accurately cut it into the appropriate size.Industrial Shears For Metal

2. Metallurgical casting industry: to provide high-quality charge for metallurgical and casting enterprises, through precise shear to ensure uniform size of charge, improve smelting quality and efficiency.

Model	Max.shear force (Tons)	Chamber size (mm)	Feeding size (mm)	Blade length (mm)	production (Tons/hour)	Shear frequency (Times/minutes)	Motor power (KW)
CS -4000	400	2065×1400×1985	3075×2200×860	1200	2.5-4	2.5~3	74
CS -5000	500	2400×1400×2000	3200×2400×900	1400	5.5-12		90
SCS-6300	630	2400×1600×2000	3200×2400×900	1600	8.0-22.0		90
