Demolition Shear Machine For Cutting Metal Scrap

Basic Info

Model No.: Customized

Brand: Starshine

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Place Of Origin: China

Warranty Period: 1 Year

Service System: Video Technical Support, Online Support

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Construction Works

Core Components: Pump

Material: Metal Scraps

Production Capacity: 500 sets/year

Usage Field: H-Shaped Steel Recovery, Dismantle Scrap Cars, Dismantle Displaced Plant, Dismantle Buildings

Application Fields: Steel Pipe Shear

Certification: GMA, QS, ISO

Transport Package: Wood Box

Color: Customized

Additional Info

Packaging: wooden case

Productivity: Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 500 sets/year

Port: Shanghai port

Product Description

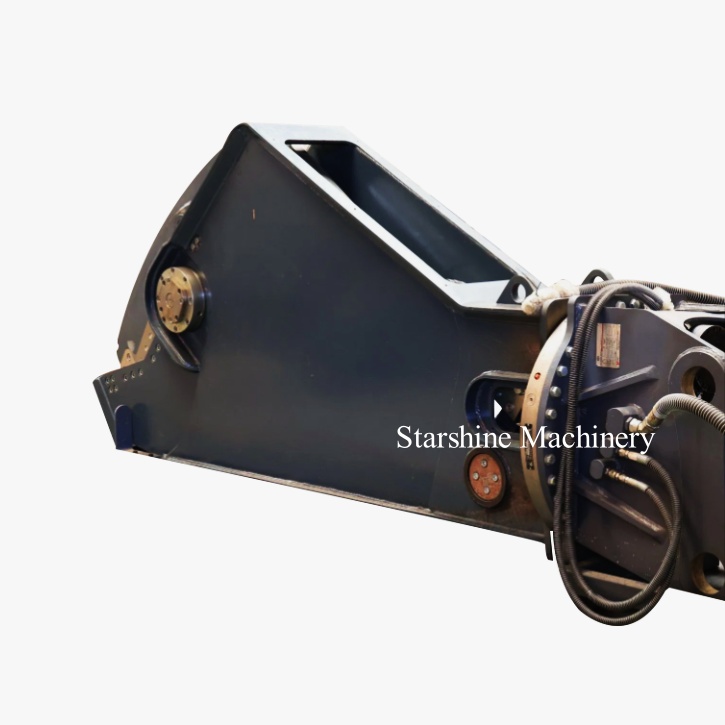

Demolition Shear Machine For Cutting Metal Scrap

Hydraulic Concrete Shear is a kind of Auxiliary Equipment installed in the front end of construction machinery (such as excavators), which uses hydraulic power to drive shear action. Its appearance is similar to the beak of an eagle, hence the name. It is mainly used for cutting various metal materials, and is an important tool for scrap metal recycling, building demolition and other industries.

Structural characteristics

1. Blade structure: It has a moving blade and a static blade. The moving blade is driven by the hydraulic device to do reciprocating movement, and the static blade is fixed on the main body of the equipment. The shape of the blade is designed to be olecran-like, which enables the blade to better concentrate its force during shearing, effectively biting into and cutting through the metal. The blade is generally made of high-strength alloy steel, such as high-chromium alloy steel, which has high hardness, high strength and good wear resistance, can withstand huge shear forces and is durable.

2. Hydraulic system connection: The hydraulic beak shears are connected to the hydraulic system of the host equipment (such as excavators) through a special hydraulic pipeline. It includes hydraulic tubing, joints and other components, which need to have good sealing and pressure resistance to ensure that the hydraulic oil can be smoothly transferred between the host hydraulic system and the olecranon shear, so as to achieve a stable power supply. Hydraulic Metal Shears For Excavator

3. Installation structure: The installation structure is reasonably designed and can be firmly installed on the bucket rod of excavators and other equipment. It is usually fixed with high-strength bolts and mounting seats, and has a certain adjustment range to adapt to different types of host equipment. The installation structure also needs to take into account the force of the eagle shear during the working process to ensure the overall stability of the equipment and prevent loosening or shaking during the shearing process.

Functional advantages

1. High efficiency: The shear speed of the Demolition Shear is relatively fast. Taking scrap metal recycling as an example, it can break down large scrap metal structures (such as the frame of a scrapped car) into smaller parts in a short time, greatly improving the efficiency of scrap metal treatment. Demolition Shears

2. Strong adaptability: The Excavator Shear can cut a variety of shapes and sizes of metal materials. Whether it is a round metal pipe, a square metal profile, or an irregularly shaped scrap metal part, the hydraulic rotary shear can flexibly adjust the shear mode according to the shape and size of the material, and effectively cut. Auxiliary Equipment

3. Easy to operate: Usually the hydraulic beak scissors is installed on the excavator and other common construction machinery, the operator can use the excavator's operation control system to control the action of the beak scissors. After simple training, the operator can master the operation skills of the olecranon scissors and carry out various cutting operations.

Working principle:

Hydraulic olecranon shears mainly rely on the hydraulic system to provide power. The hydraulic pump sucks the hydraulic oil out of the tank and sends it to the hydraulic cylinder through the pressure pipe. When the hydraulic oil enters the hydraulic cylinder, it pushes the piston movement, and the piston drives the moving blade connected with it.

The moving blade and the static blade cooperate with each other to imitate the action of the olecranon to bite and cut the metal material. By controlling the flow and direction of the hydraulic oil in the hydraulic system, the speed and direction of the moving blade can be adjusted to achieve accurate cutting operations. For example, at the dismantling site of scrapped cars, the hydraulic beak scissors can flexibly adjust the shear Angle and strength according to different parts of the car body structure, and gradually cut the metal parts such as the car frame and body sheet.

Application：
