Scrap Copper Briquetting Press Machine

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

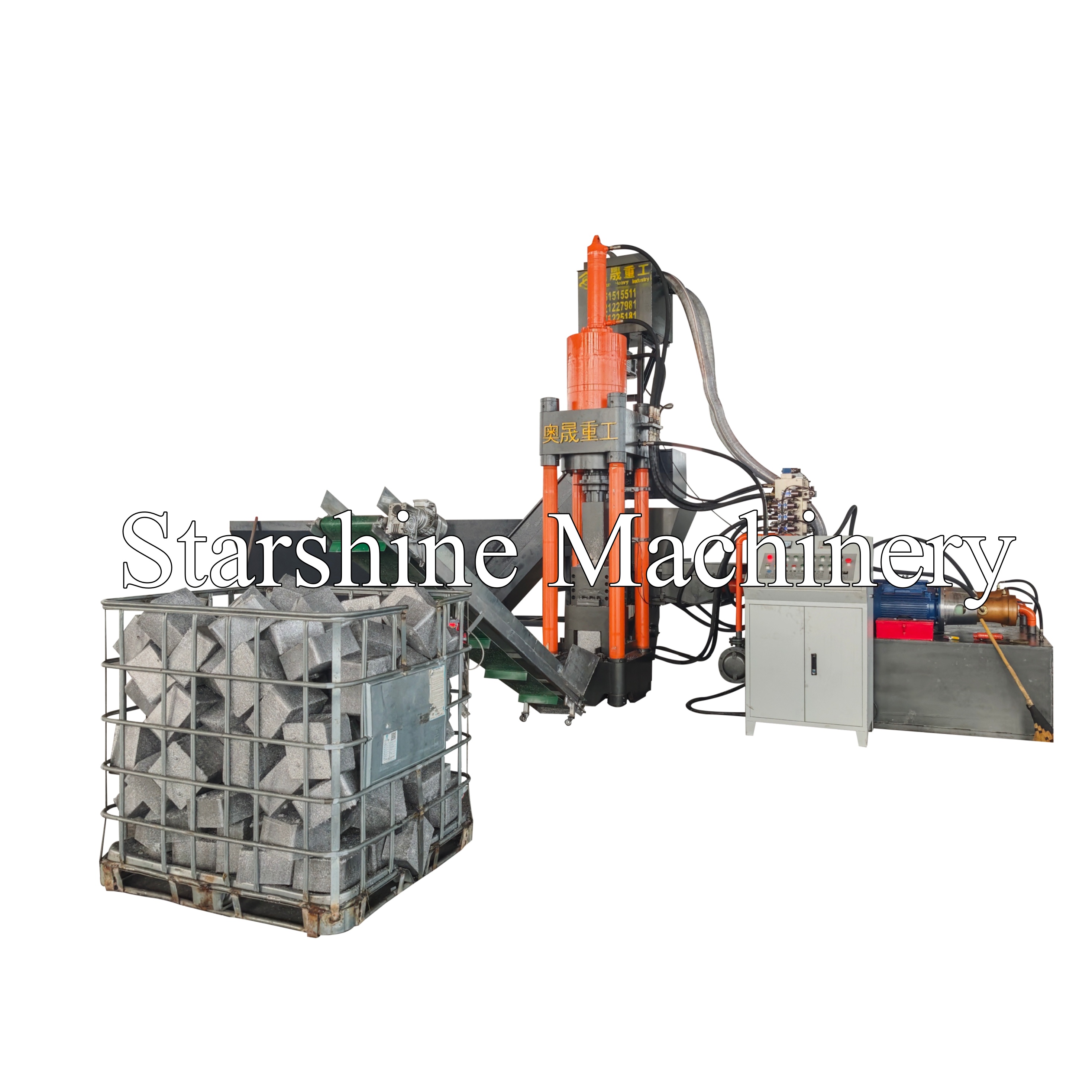

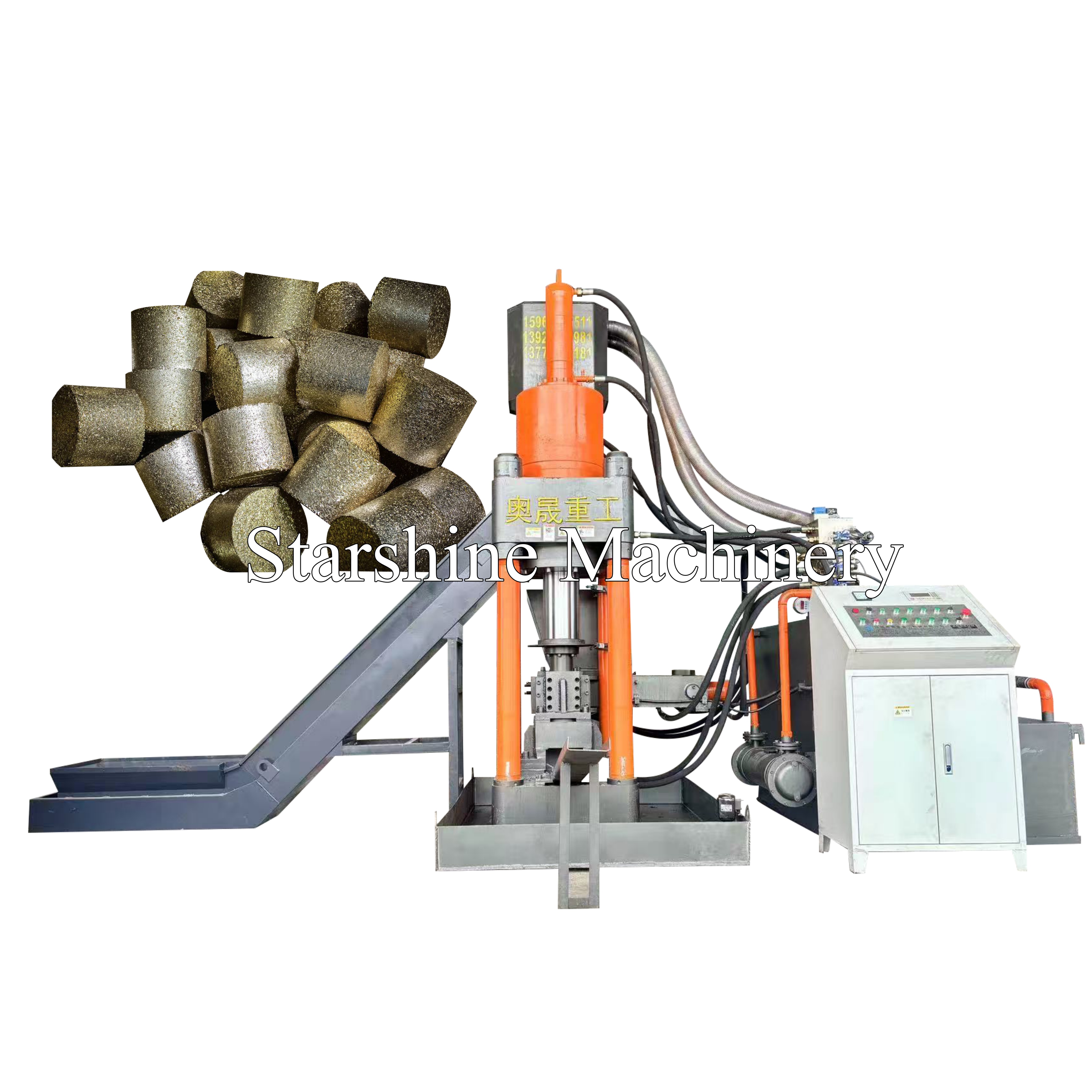

Scrap Copper Briquetting Press Machine

Introduction：

The equipment is used to treat loose metal materials such as iron filings, aluminum filings, copper filings, shavings, wires, alloy filings, broken materials, metal bottle caps, etc., which are cold pressed into high density cake at room temperature and directly thrown into the furnace, meeting the requirements of foundry and iron and steel mills for smelting charges.

Product Features:

1. Full hydraulic drive, smooth work, reliable performance.Metal Chip Briguetting Machine

2. The whole machine automatic control, equipped with automatic feeding conveyor and unloading device, high efficiency.

3. Recyclable chip liquid, reduce environmental pollution.Copper Briquetting

4. Customized design mold cavity and pressure cake size, to meet the different needs of customers.Copper Chip Press

Applications：

1. Machining industry：In the mechanical manufacturing, auto parts processing, aerospace parts manufacturing and many other mechanical processing fields, the cutting of copper and aluminum materials is a common production link, resulting in a large number of copper and aluminum chips. These enterprises through the use of copper and aluminum chip cake press, the metal chips are recycled and processed in time and made into cake, which is convenient for recasting in the furnace, and the production of new parts or alloy materials, which realizes the recycling of metal resources in the enterprise, reduces the cost of raw material procurement, and improves the profitability of the enterprise and the self-sufficiency of resources.

2. Nonferrous metal smelting industry：For non-ferrous metal smelters, the acquired copper and aluminum scraps are often an important supplement to raw materials. However, untreated loose metal chips have many inconveniences and drawbacks in the smelting process. After the introduction of copper and aluminum chip cake press, the smelter can pretreat the acquired metal chips, press them into cakes and then put them into the furnace, which not only improves the smelting efficiency, reduces energy consumption and metal loss, but also better controls the chemical composition and quality stability of the smelting process to ensure the production of high-quality non-ferrous metal products. Meet the market demand for high-quality non-ferrous metals.

3. Electronic and electrical industry：With the acceleration of the replacement of electronic products, the amount of electronic waste has increased sharply, including a large number of waste circuit boards and other copper and aluminum components. Electronic and electrical recycling enterprises use copper and aluminum chip cake press to press the dismantled copper and aluminum waste, which is convenient for storage and transportation on the one hand, and creates good conditions for the subsequent professional refining and recycling on the other hand, improving the recovery value of metal resources in electronic waste, while reducing the pollution of electronic waste to the environment, and achieving a win-win situation of economic value and environmental benefits.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
