Cast Iron Press Iron Briquetting Machine

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

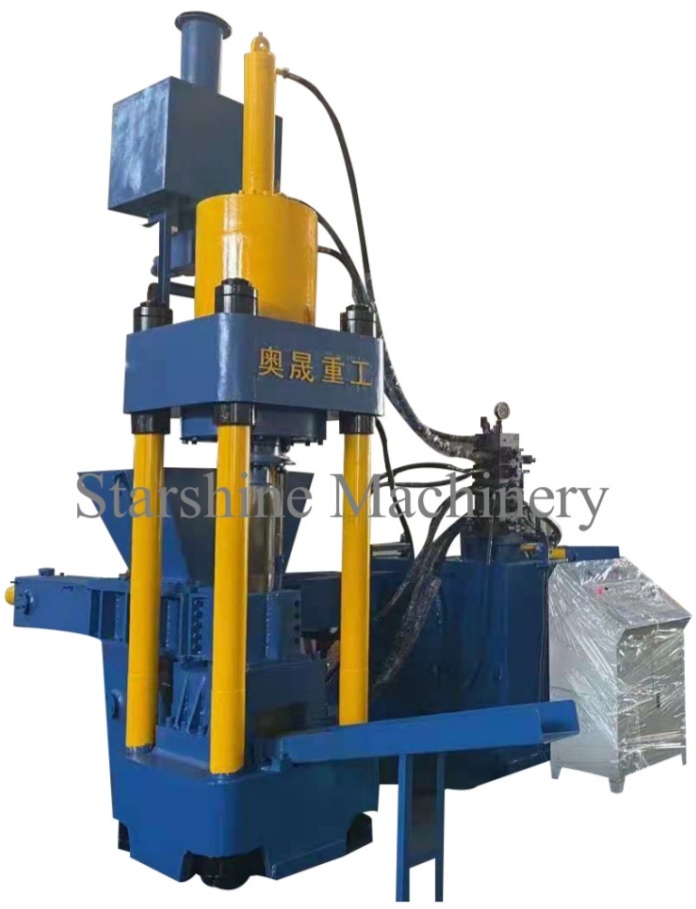

Cast Iron Press Iron Briquetting Machine

Working Principle:

• Feed: Cast iron chips are fed into the compression chamber of the Iron Briquetting Press through the feed port, which is designed to adapt to the diversity and size differences of metal chips to ensure smooth feeding.

• Compression: After the cast iron chips enter the compression chamber, the indenter of the briquetting press presses down. Under the action of high pressure in the compression chamber, the cast iron chips are closely arranged to form a compact briquette structure. The compression force and speed can be adjusted according to demand.

• Discharge: After compression is complete, the compressed cast iron briquettes will be automatically or manually pushed out.

Main Functions:

• Pressure briquettes forming: The cast iron chips are directly pressed into briquettes forming by hydraulic means, and the gate type pushing system is adopted, which has high speed and efficiency.Metal Briquetting Press

• Cutting oil separation: While pressing the briquette forming, the cutting oil can be separated from the briquettes, and the cutting oil can be recycled to ensure that the original material of the briquettes is not polluted.

• Crushing function: Some Hydraulic Briquetting Machines are equipped with chip shredders, which can break large metal chips into small sizes. The equipment has strong power and stable operation, and has the characteristics of large shear force, good crushing effect and low noise.

Equipment Advantages:

• Space saving: the cast iron chips are compressed into briquettes, which greatly reduces the space occupied, facilitates storage and transportation, saves storage costs, and improves the efficiency of logistics transportation.

• Increased recycling value: Pressed metal briquettes is easier to send to smelters for reprocessing, promoting resource recycling and increasing recycling prices.

• Environmental protection and energy saving: Cast Iron Chip Press can effectively control the pollution of cast iron chips to the environment, and realize the recycling of resources by recycling cutting oil, etc., in line with the requirements of environmental protection and energy saving.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
