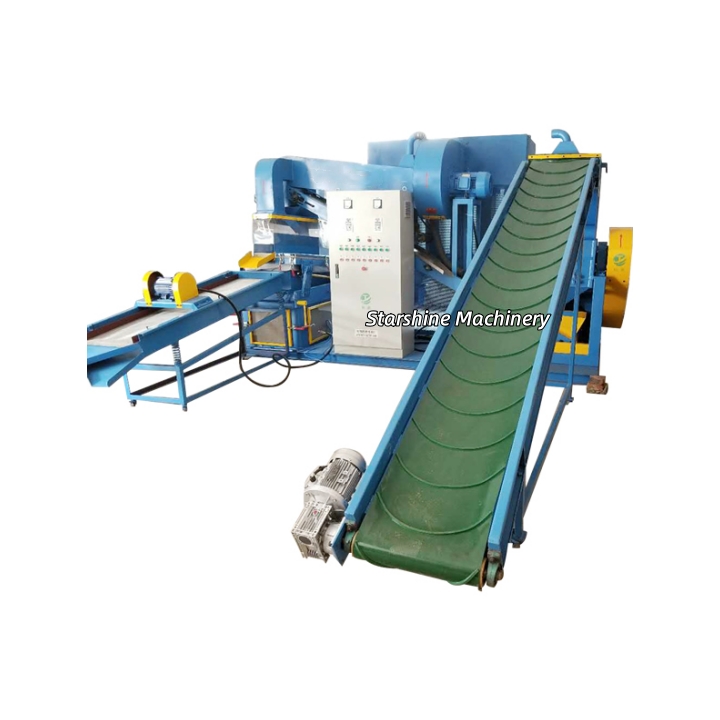

Copper Cable Separator Machine

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Machine Type: Copper Wire Recycling Machine

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Motor, Pump

Warranty Period: 1 Year

Core Selling Point: High-Accuracy

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industries: Waste Wire Recycling

Core Components: Engine and Pump

Function: Metal Recycling Machine

Voltage: According to Your Country Voltage

Metal Processed: Copper Brass

Method: Physical Method

Physical Method: Scrap Separating and Granulating

Automation: Automatic

Video Outgoing Inspection: Support

Key Selling Points: Fully PLC Control

Additional Info

Packaging: wooden case,wire locking,nude packing,plastic film

Productivity: Customimzed

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 8479820090

Port: Shanghai port

Product Description

Copper Cable Separator Machine

Working Method:

The use of two different densities of substances under the action of the wind, after a certain angle of the screen surface for the amplitude of the movement generated by the deflection, so that the density of the copper wire sticking to the screen to the copper outlet forward, the density of the small plastic skin floating in the copper above the flow to the skin outlet, so as to achieve the purpose of the separation of copper and plastic. In addition, may also use electrostatic separation and other principles to further improve the separation effect!

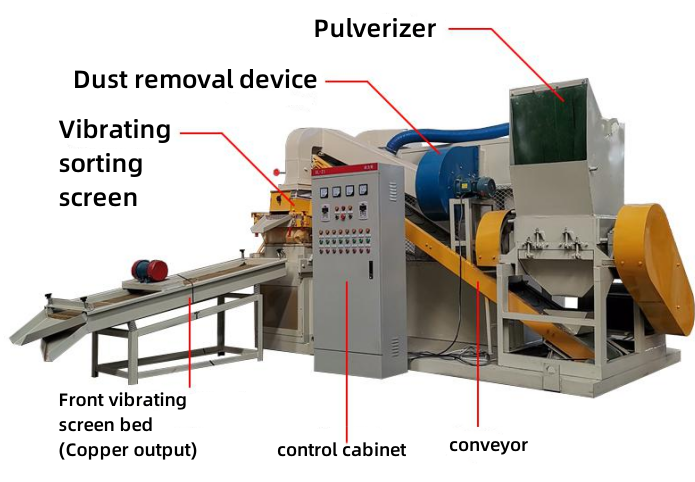

Structural components:

1. Crushing system: generally consists of a coarse crusher and a fine crusher, which are used to gradually crush the cable into smaller particles so that the subsequent separation process can be better carried out. The coarse crusher can cut the cable into shorter segments, while the fine crusher further crushes it into smaller particles.

2. Separation system: the separation system of dry copper rice machine mainly includes airflow separator, air shaker or electrostatic separation device, etc.; wet copper rice machine is mainly gravity shaker, which realizes the separation of copper and plastic through the action of water flow and gravity.

3. Dedusting system: For dry type copper rice machine, it is crucial to equip with efficient dedusting devices, such as cyclone dust collector, bag dust collector and air purifier, etc., which can effectively collect the dust generated in the process of crushing and separating and reduce the environmental pollution.

4. Conveying system: It consists of conveyor belt, elevator, etc., which is responsible for conveying the cable raw materials to the crushing system, as well as conveying the crushed materials to the separating system, and at the same time, conveying the separated copper rice and plastic granules to the designated collection containers.

Cable Type：

Copper Granulator can handle a wide range of materials such as thick and thin cables, miscellaneous cables, communication cables, automobile wiring harnesses, electronic scrap and so on. Example:

1. Fine cables (e.g. mesh cables) need to be finely crushed (0.5-1mm particles) for copper-plastic separation;

2. Cables with steel strip / steel wire need to be crushed first and then removed from metal impurities by magnetic separation.

Finished product characteristics:

1. Granular structure

Range of particle size: after being processed by Cable Wire Granulator Machine,the partical sizet usually 0.5~3 mm, similar to rice grains (hence the name “copper rice”), some equipment can control the particle size by adjusting the screen (e.g. ultra-fine copper rice can be up to 0.1 mm or less).

Surface area advantage: the granular structure has a larger surface area than traditional copper scrap (e.g., copper wire, copper block), and the melting speed is faster during smelting, which can shorten the heating time and reduce energy consumption.

2. Less impurity attachment

After the multi-stage crushing and sorting of Copper Wire Granulator (such as gravity sorting, electrostatic sorting), the separation of copper rice and non-metallic impurities such as plastics and rubbers is high, and only a very small amount of finely chopped plastics are attached to the surface (usually <1%).

Compared with the traditional manual dismantling: manual stripping of copper wire is often entangled in plastic skin, requiring secondary processing to remove impurities, while the copper rice has been initially purified, reducing the subsequent processing steps.
