Square Baler Hydraulic Press Horizontal Hay Balers

Basic Info

Model No.: Customized

Brand: Starshine

Applicable Industry: Farms, Other

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Motor, Pump

Types Of: Square Baler

Status: New

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: High Productivity

Bale Size: Customized

Material: Straw,waste clothes,cardboard,plastic bottles...

Cooler: Air Cooler

PLC: With Touch Screen

Transport Package: Seaworthy Packing

Certification: CE

Spercification: Customized

Specification: customized

Production Capacity: 200 sets/year

Screw: Customized

Additional Info

Packaging: wooden case,wire locking,nude packing,plastic film

Productivity: Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 84224000

Port: Shanghai port

Product Description

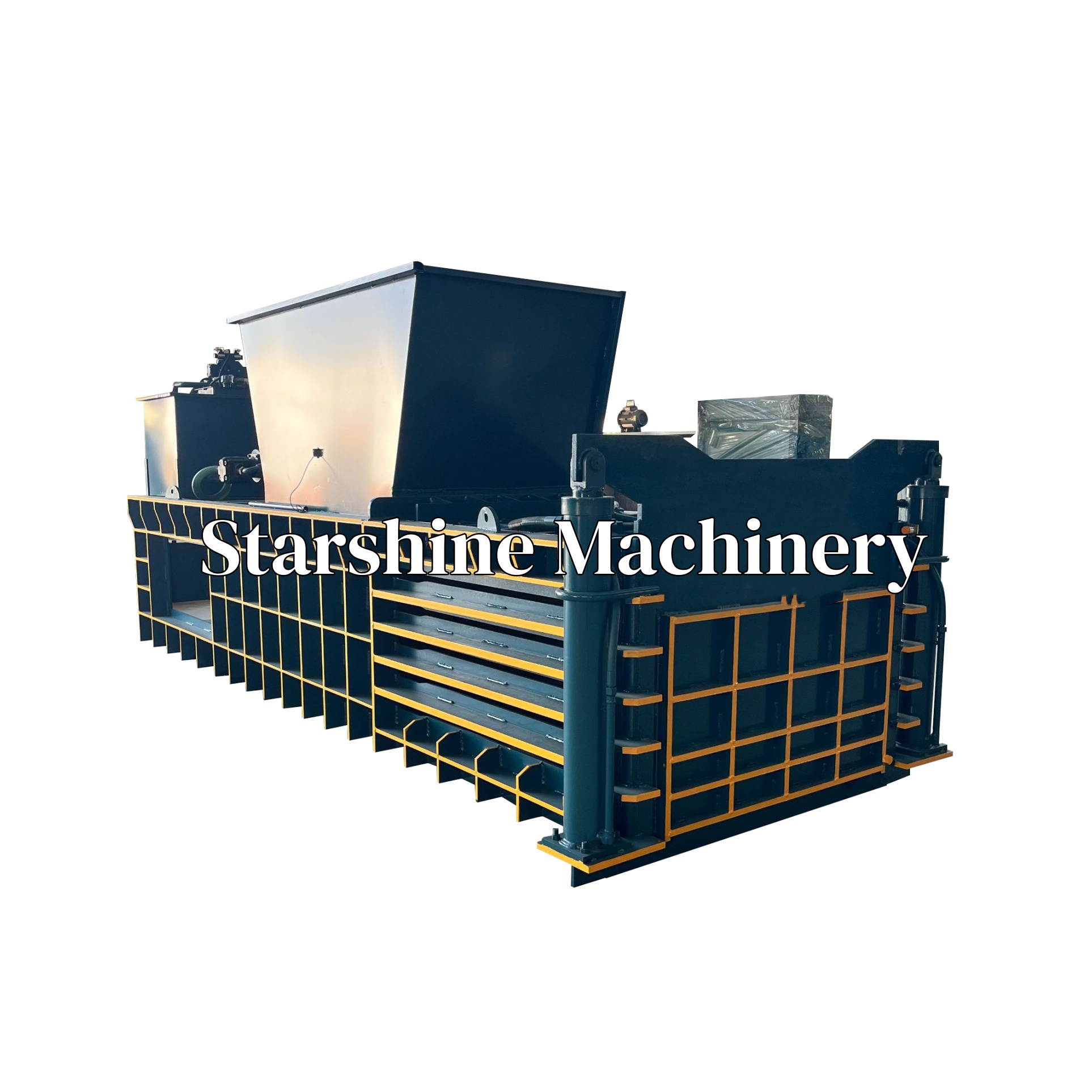

Square Baler Hydraulic Press Horizontal Hay Balers

Structural composition:

It mainly consists of a feeding device, a compression device, a tying device, an output device and a power system. The feeding device is responsible for conveying the hay into the machine; the compression device squeezes the hay to form a tight bale; the tying device uses ropes or wires to tie the bales firmly; the output device discharges the packaged bales out of the machine; the power system provides power support for the entire baling process, and the common methods are hydraulic drive and mechanical drive.hay balers

Working principle:

During operation, the hay enters the horizontal Hay Baler through the feeding device and then enters the compression device. In the compression device, components such as pistons or pressure plates reciprocate and compress the hay under power drive, reducing the volume of the hay and increasing its density to form a tight bale. When the bale is compressed to a certain extent, the tying device automatically starts and ties the bale firmly with the pre-set tying material. Finally, the output device pushes the tied bale out of the machine to complete the entire baling process.square baler

Features:

1. High efficiency and high yield: The horizontal structure design makes the feeding of hay and the output of bales smoother, and can realize continuous operation, greatly improving the baling efficiency, and is suitable for large-scale hay baling operations.Hydraulic Press horizontal

2. Easy operation: It is usually equipped with advanced control systems, such as PLC control systems, and the operation interface is simple and intuitive. Operators can easily complete various operations through buttons or touch screens, reducing the technical requirements for operators.Baling Press

3. Good bale quality: By adjusting parameters such as compression strength and time, the density of the bales can be uniform and the compactness is high. It is not easy to loosen during storage and transportation, reducing the loss of hay.

4. Strong applicability: It can be applied to various types of hay, such as alfalfa, sheep grass, rice straw, wheat straw, etc., and the packaging size and density can be adjusted according to different types of hay and customer needs.Hydraulic Baler

5. Low maintenance cost: The structure is relatively simple, and the key components are made of high-quality materials, with high wear resistance and reliability, reducing the probability of failure, and easy maintenance, reducing maintenance costs.Hay Baler Machine

Model	JPW80QT	JPW100QT	JPW120QT	JPW150QT
Hydraulic power	80Ton	100Ton	120Ton	150Ton
Packaging size(WHL)	1100800(300-1800)mm	11001000(300-2000)mm	11001100(300-2100)mm	11001100(300-2100)mm
Feed opening size(L*W)	1650*1100mm	1800*1000mm	2000*1100mm	2200*1100mm
Bale density	450-550Kg/m3	500-600Kg/m3	550-650Kg/m3	600-750Kg/m3
Bale line	4 line	4 line	5 line	5 line
Capability	4-7Ton/Hr	7-10Ton/Hr	8-13Ton/Hr	10-16Ton/Hr
Power	37KW/50HP	55KW/75HP	67KW/90HP	93KW/124HP
Machine size(LWH)mm	790035002300	890040502400	970043302400	1000042502500
Machine weight	11Ton	13.5Ton	17Ton	20Ton
