Working Principle:
1. Hydraulic drive: use the motor to drive the oil pump to work, extract the hydraulic oil in the oil tank, convey the oil to each hydraulic cylinder through the hydraulic oil pipe, drive the piston rod of the cylinder to do transverse or longitudinal movement, so as to produce a strong pressure, and compress the waste plastic bottles placed in the baling room.
2. Automatic control: Adopting PLC program automatic control technology, it can realize a series of operations such as automatic feeding, baling and strapping. It can also accurately control and adjust various parameters in the baling process, such as baling pressure, baling length and baling speed.
Structure composition:
Frame: Usually welded by high-strength steel, it is the support structure of the whole baler, with good rigidity and stability, able to withstand the huge pressure generated during the baling process.

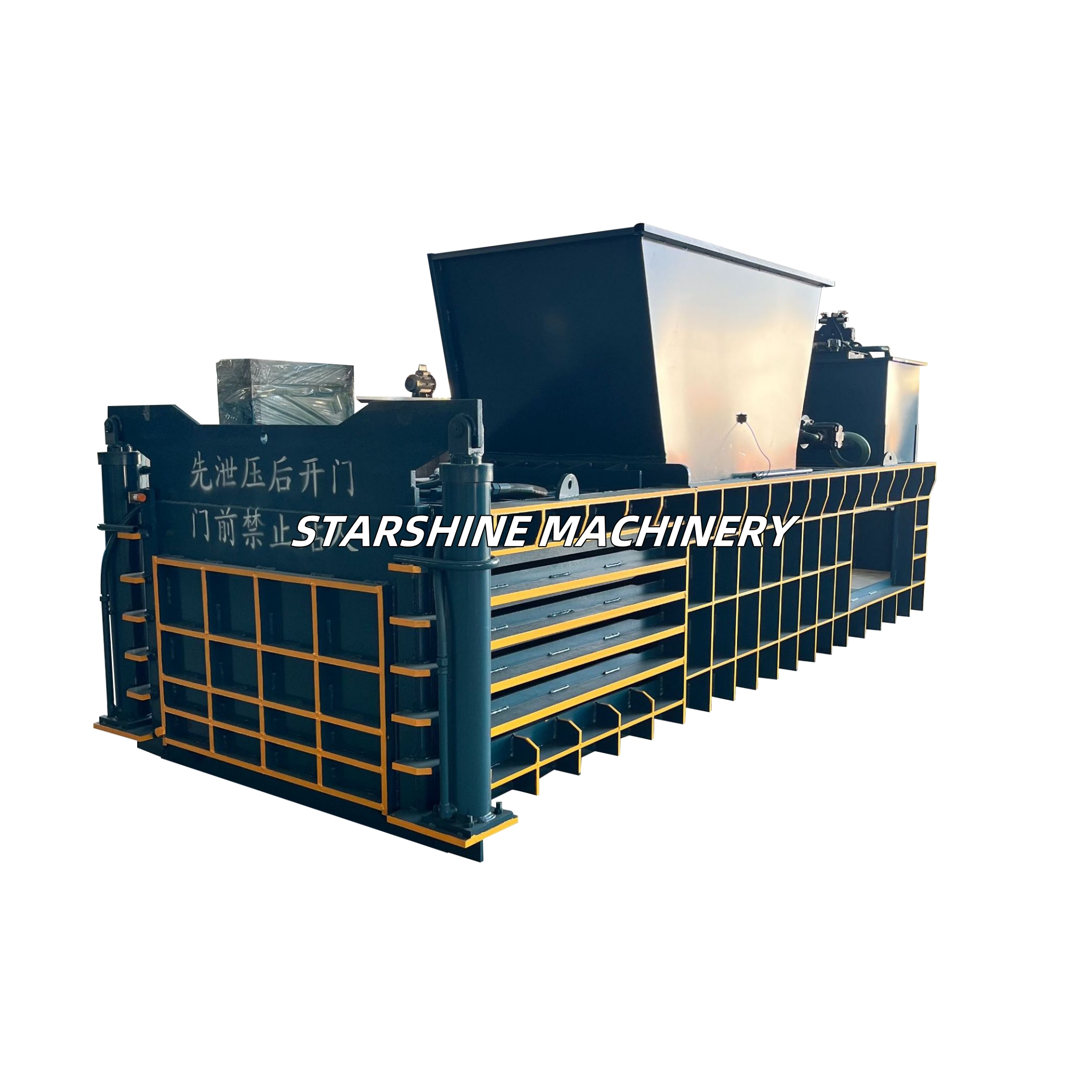

Hydraulic Press HorizontalMachinery Horizontal Baler Frame for Waste Plastic Bottles
Compression chamber: the space used to hold the waste plastic bottles, usually made of high-strength steel plate, with high compressive strength, to prevent deformation or rupture in the compression process.

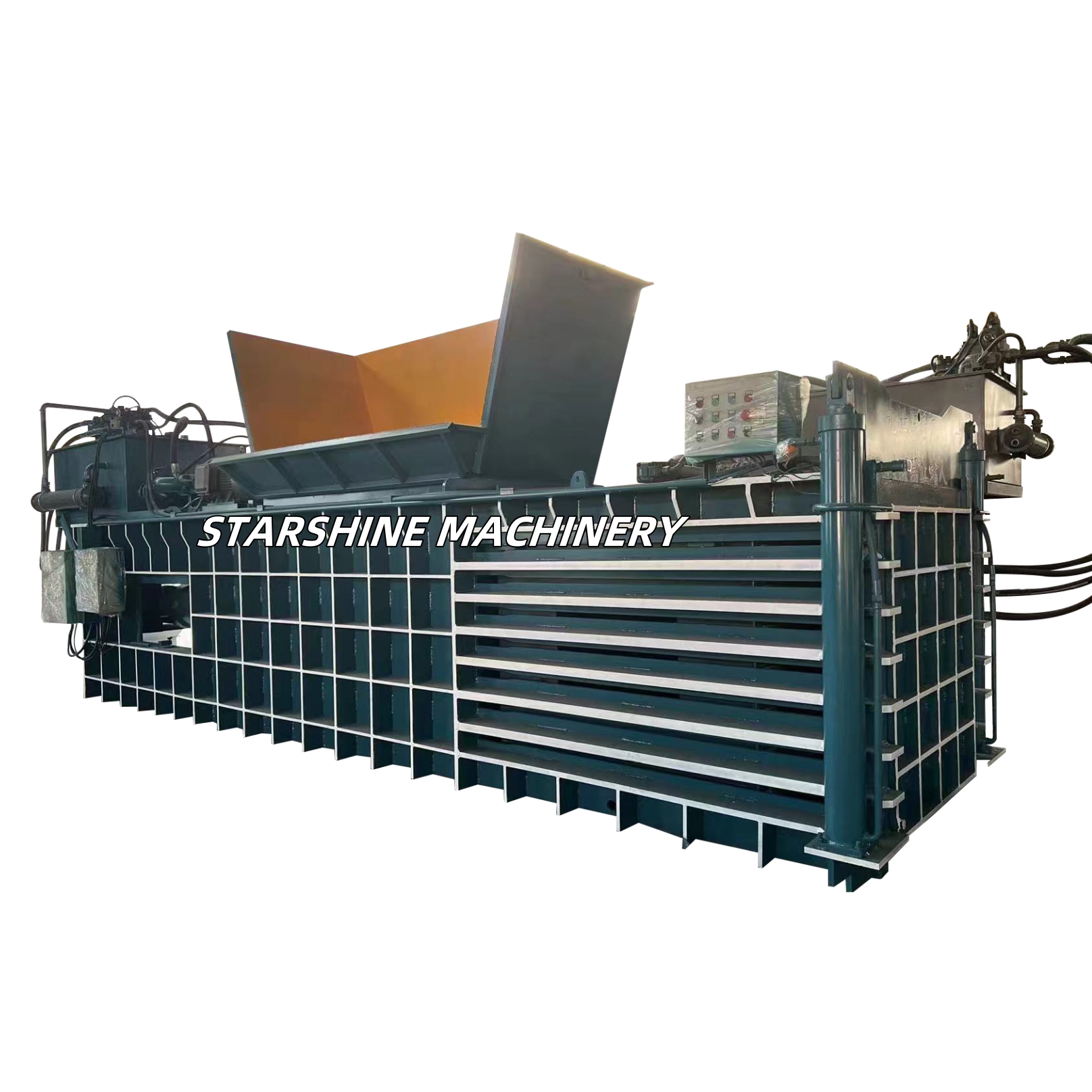

Hydraulic BalerMechanical Horizontal Baler Compression Chamber for Waste Plastic Bottles
Hydraulic system: including oil pump, oil cylinder, hydraulic oil pipe, oil tank and other components, is the core part of the power supply, through the transmission of hydraulic oil, the mechanical energy of the motor into the linear movement of the piston rod mechanical energy, to realize the compression of waste plastic bottles.
Mechanical Horizontal Baler Hydraulic System for Waste Plastic Bottles
Feeding device: common chain plate or
Belt Conveyor, which can convey the waste plastic bottles from the stacking place to the entrance of the compression chamber, with large conveying capacity, abrasion-resistant, strong loading capacity, and anti-slip function.
Strapping device: when the waste plastic bottles are compressed to the set size and density, the strapping device will automatically wrap the strapping around the compressed plastic bottles to prevent them from falling apart during transportation and storage.
Machinery Horizontal baler strapping device for waste plastic bottles
Control system: Generally adopts PLC controller, with operation buttons, touch screen, etc., to realize the control of starting, stopping, parameter setting, fault alarm and other functions of the baler, which is simple and convenient to operate and easy to maintain.
Feature Advantages：
1. Improve production efficiency: Horizontal structure design, compared with vertical baler, its baling chamber capacity is larger, can deal with more waste plastic bottles at one time, and can realize continuous operation, greatly improving the baling efficiency. Meanwhile, the automatic feeding, baling and strapping function reduces the manual operation link, saving time and labor cost.
2. Good compression effect: with hydraulic drive, it can produce larger pressure, which can compress waste plastic bottles into bales with higher density, and the shape and size of bales are uniform and neat, which greatly reduces the volume of waste plastic bottles, lowers the transportation cost, and facilitates the subsequent storage, transportation and processing.Horizontal Baler
3. Easy operation: equipped with advanced control system, various operations can be completed through the button or touch screen, the operation interface is simple and easy to understand, even inexperienced operators can quickly get started. Meanwhile, it also has an automatic alarm function, which can send out an alarm signal in time when the equipment is in trouble, so that it is convenient for maintenance personnel to carry out investigation and maintenance.
4. Wide range of application: not only can it be used for baling waste plastic bottles, it can also be used for baling a variety of loose materials such as waste paper, plastic film, cans, woven bags, etc., which is highly versatile.
5. High safety performance: set up a variety of safety protection devices, such as emergency stop button, protective door locks, overload protection, etc., can effectively prevent the operator in the process of equipment operation in the event of accidents, to protect the safety of personnel and equipment.
