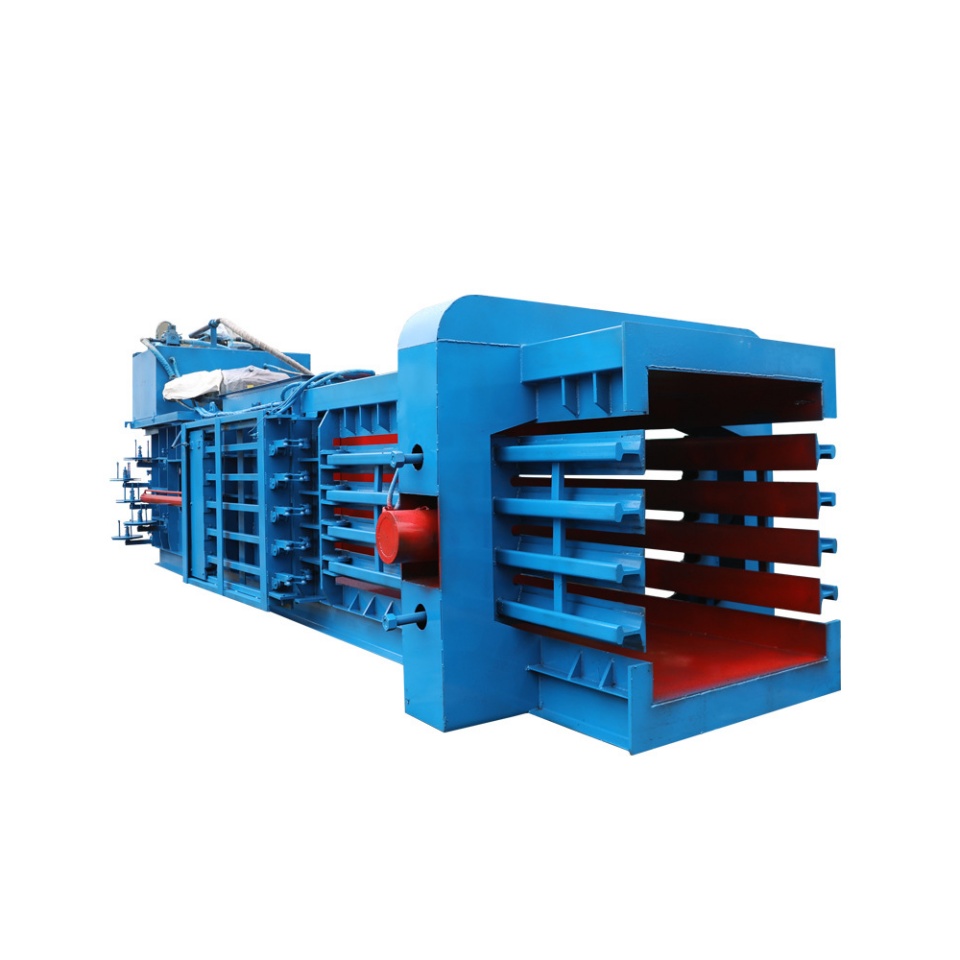

Hydraulic Press Baler For Plastic Bottle Scrap

Basic Info

Model No.: Customized

Brand: Starshine

Applicable Industry: Farms, Other

Out-of-warranty Service: Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Motor, Pump

Types Of: Square Baler

Status: New

Place Of Origin: China

Warranty Period: 1 Year

Core Selling Point: High Productivity

Bale Size: Customized

Material: Straw,waste clothes,cardboard,plastic bottles...

Cooler: Air Cooler

PLC: With Touch Screen

Transport Package: Seaworthy Packing

Certification: CE

Spercification: Customized

Specification: customized

Production Capacity: 200 sets/year

Screw: Customized

Additional Info

Packaging: wooden case,wire locking,nude packing,plastic film

Productivity: Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 84224000

Port: Shanghai port

Product Description

Hydraulic Press Baler For Plastic Bottle Scrap

Pet Bottle Baler is a special compression and baling equipment for plastic bottles (e.g. PET beverage bottles, mineral water bottles, edible oil bottles, etc.), which compresses scattered and fluffy-volume plastic bottles into high-density bales through hydraulic or mechanical power, making it easy for transportation, storage and subsequent recycling treatment. Its core advantage lies in its large processing capacity and high degree of automation, especially suitable for large-scale recycling scenarios.

Main structural composition

1. Frame: Horizontal long box design, the material is mostly high strength steel, to ensure pressure resistance and stability, common size according to the different processing capacity, the length can be up to 3-8 meters.Plastic Bottle Baler

2. Hydraulic system: the core power source, including hydraulic pumps, cylinders, solenoid valves, etc., to provide a strong thrust (pressure is usually 10-25MPa), drive the piston for compression.

3. Feeding mechanism: automatic or semi-automatic feeding, common forms of conveyor belt, chain plate feeding, part of the equipment is equipped with a crushing device, the first plastic bottle crushing and then compression, improve efficiency.

4. Bundling system: after the compression is completed, the packages are bundled and fixed by steel wires and PET baling bands to prevent them from being loosened.

5. Control system: PLC intelligent control, can set the number of compression, pressure parameters, strapping program, etc., some of the equipment supports touch screen operation.

Working Principle

1. Feeding: Plastic bottles are fed into the feeding port of baler by hand or conveyor;

2. Compression: the hydraulic cylinder pushes the piston to repeatedly squeeze the plastic bottles from the horizontal direction, and the volume compression ratio can reach 1:8-1:15 (for example, 1000L loose plastic bottles can be compressed to 80-125L);

3. Forming and strapping: after compression to the set density, the piston keeps the pressure, and the strapping mechanism automatically wraps the strapping tape to fix the bales;

4. Discharge: the bales are pushed out from the side or rear door to complete the baling process.
