Car Baler Hydraulic Press For Automobile

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Gear, Pump

Warranty Period: 1 Year

Machinable Material: Brass / Copper, Alloy, Aluminum, Carbon Steel, Stainless Steel

Core Selling Point: Multifunctional

Out-of-warranty Service: Video Technical Support, Online Support

Applicable Industry: Manufacturing Plant, Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Color: Customized

Energy Consumption: Energy Saving and Environmental Protection

Marketing: Factory Directly Supply

Production: 1.5~15tons/Hrs or Customized

Bale Size: Automatically by PLC

PLC Brand: Siemens, Mitsubishi or Customized

Baling Capacity: Widely

Transport Package: Seaworthy

Bale Discharging: Turn-out/Push-out

Application: Brass Alloy Metal Scrap

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 1.5~15tons/Hrs or Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 8422400000

Port: Shanghai port

Product Description

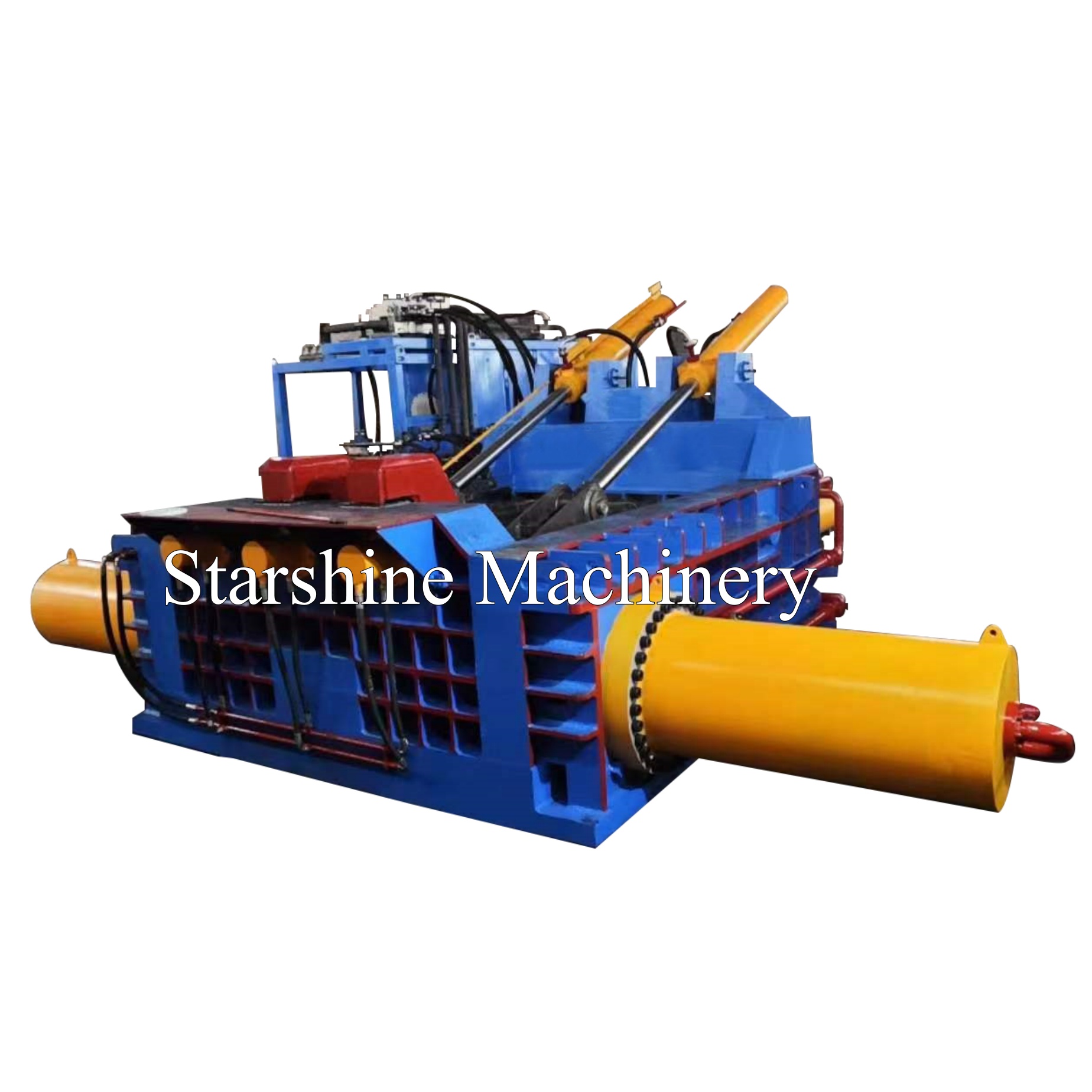

Car Baler Hydraulic Press For Automobile

Structural composition：

1. Frame: Usually welded from high-strength steel, it constitutes the main frame of the equipment, provides a stable support structure for the entire packaging process, ensures no deformation under high-pressure operation, and ensures the reliability and safety of the equipment.Mobile Car Baler

2. Hydraulic system: core components, including oil pumps, oil cylinders, hydraulic valves, oil tanks, etc. The oil pump converts mechanical energy into hydraulic energy, accurately controls the flow direction and pressure of hydraulic oil through hydraulic valves, drives the oil cylinder to generate strong pressure, and realizes the compression and packaging of the car. The oil cylinder is an actuator that directly provides the pressure required for packaging.Car Baler Machine

3. Compression chamber: It is a space for placing cars or parts, surrounded by high-strength steel plates. Its size is designed according to the processing capacity of the equipment and can accommodate cars of different sizes or a large number of parts. The inner wall of the compression chamber is smooth to reduce the friction resistance with the material during the compression process.Auto Baler

4. Feeding device: Common ones include conveyor belts, chain conveyors or hydraulic pushers, etc., which are used to smoothly and efficiently transport the cars or parts to be processed into the compression chamber to improve the packaging efficiency.Car Baler

5. Control system: PLC (Programmable Logic Controller) or other intelligent control systems are used. The operator sets the packaging parameters, such as compression pressure, holding time, feeding speed, etc., through the control panel. The system automatically coordinates the actions of various components to achieve automated operation. At the same time, the control system also has fault diagnosis and alarm functions, which facilitates timely discovery and handling of problems in equipment operation.

Working Principle:

1. Feeding: The scrapped car or parts are transported into the compression chamber through the feeding device. If it is a complete scrapped car, it may be necessary to disassemble it simply to remove dangerous parts such as flammable and explosive parts for better compression.

2. Compression: When the material enters the compression chamber, the hydraulic system starts. The oil pump pressurizes the hydraulic oil in the tank and delivers the high-pressure oil to the cylinder through the control of the hydraulic valve. The piston rod of the cylinder extends and pushes the compression plate to exert huge pressure on the material, so that the car or parts are gradually compressed in the compression chamber and the volume is greatly reduced.Scrap Metal Baler

3. Packing and forming: Under the action of continuous high pressure, the material is compressed into a tight block. At this time, steel belts can be wrapped around the compression block or other strapping materials can be used to fix it as needed to keep it in the compressed shape, which is convenient for subsequent transportation and processing.

4. Discharging: After packaging and bundling, the hydraulic system controls the cylinder piston rod to retract, opens the discharge port of the compression chamber, and transports the compressed block out of the equipment through the discharge device to complete a working cycle.Metal Baler

Application scenarios:

1. Automobile recycling and dismantling enterprises: It is a key equipment for the recycling and processing of scrapped cars. It can quickly compress and pack the recycled scrapped cars, which is convenient for centralized storage and transportation to steel smelters for reprocessing, so as to realize the recycling of resources.

2. Scrap recycling station: In addition to processing scrapped cars, it can also be used to compress other large metal scraps, such as scrap metal frames, mechanical equipment, etc., to improve the efficiency and economic benefits of scrap recycling.

3. Steel smelters: The recycled car packing blocks are used as steelmaking raw materials. Due to the high density of the packing blocks and relatively few impurities, the production efficiency and molten steel quality of steelmaking can be improved.

Model	Main cylinder force (ton)	Feed box size (mm)	Bale size (mm)	Bale weight( kg)	Motor (kw)
2500	250	500020001200	700*700	300-800	90
3150	315	500020001200	700*700	500-1000	135
4000	400	520022001200	700*700	800-1200	180
we can also customize according to you!
