Definition of Steel Baler:
Scrap Metal Baler, also known as scrap steel baler, metal scrap baler, etc., is a professional equipment specially designed for compressing scrap metal materials such as iron, aluminum, copper and other scrap metal materials into tight, regular blocks through high pressure for storage, transportation and further processing.
Application areas of Metal Baler:
mainly used in recycling and processing industry and metal smelting industry, can be a variety of metal scraps, steel shavings chips, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings chips, disintegrated car shells, waste oil drums and other metal raw materials are extruded into rectangular, cylindrical and other shapes of the qualified furnace material, easy to store, transport and reuse back to the furnace.
Working Principle of Steel Baling Machine：
1. Hydraulic Drive: Scrap metal baler is usually driven by hydraulic system, through the oil pump will be hydraulic oil from the tank, pressurized and transported to each hydraulic cylinder, produce strong pressure to drive the press head for compression of scrap metal.
2. Compression process: first of all, the scrap metal materials into the material box, the door cover is closed and locked for primary pre-compression; then the side pressure cylinder forward for secondary compression; stroke in place, the main compression cylinder forward for the ultimate compression, to be the main compression cylinder to reach the system pressure to hold pressure for a period of time, so that the scrap metal is compressed into high-density lumps. Then the main and side compression cylinders return, pull out the lock and open the door cover, and finally the bale turning cylinder works to turn out the bale block and return, completing a working cycle.
Main features of Scrap Metal Baler：
1. High-efficiency compression capacity: it can quickly compress metal scrap into high-density, small-volume blocks, improve the compression ratio, increase the payload for each transportation, and reduce the transportation cost.
2. Automatic flap design: Unique flap structure facilitates loading and unloading, while safeguarding the safety of the operator and avoiding the risk of splashing metal fragments.
3. Intelligent control system: Equipped with advanced intelligent control system, it can realize automatic operation and fault detection. Operators can easily set the compression parameters through the control panel, monitor the machine operation status in real time, and get the fault alarm information in time to ensure the continuity and stability of production.
4. High durability and stability: Adopting high quality materials and advanced manufacturing process, the structure is sturdy and can withstand long-term high load work, reduce maintenance cost and prolong service life.
5. Wide applicability: It is suitable for compression treatment of a wide range of metal wastes, including ferrous metals (e.g., iron, steel) and non-ferrous metals (e.g., aluminum, copper), etc. Whether it is waste auto parts, industrial wastes, or metal parts in waste household appliances, it can be effectively treated.
6. Energy-saving and environmental protection: Designed with energy-saving and environmental protection in mind, the efficient compression process reduces the volume of scrap metal and lowers carbon emissions during transportation. Meanwhile, the advanced hydraulic system realizes the efficient use of energy and reduces energy consumption.

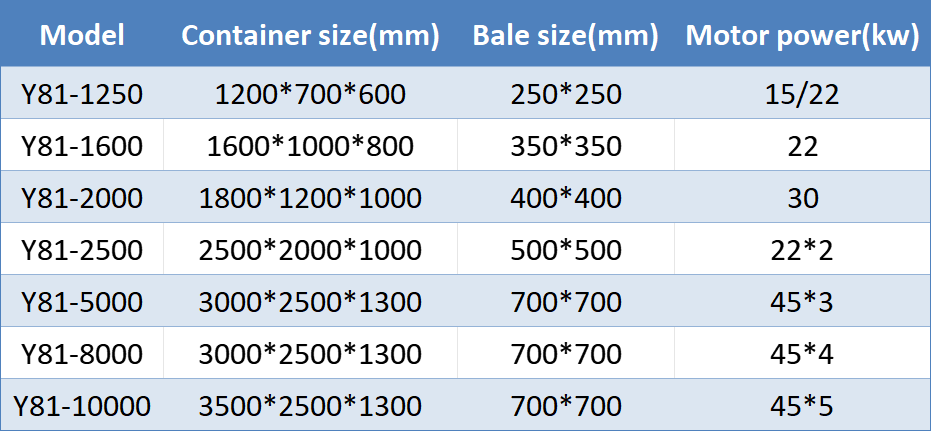

7. Types and Discharge Forms Types: from the structure and function, it can be divided into horizontal scrap metal baler and vertical scrap metal baler, etc.. Horizontal balers usually have larger compression chambers and higher compression force, which are suitable for handling a large amount of scrap metal materials; vertical balers cover a smaller area and are relatively easy to operate, which are suitable for places with limited space.
8. Discharge form: there are four ways: side-turning bale, side-pushing bale, front-pushing bale or no bale discharge, which can be selected according to the actual demand and site layout.
