Hydraulic Aluminum Chips Filings Shavings Briquetting Press

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 84629190

Port: Shanghai port

Product Description

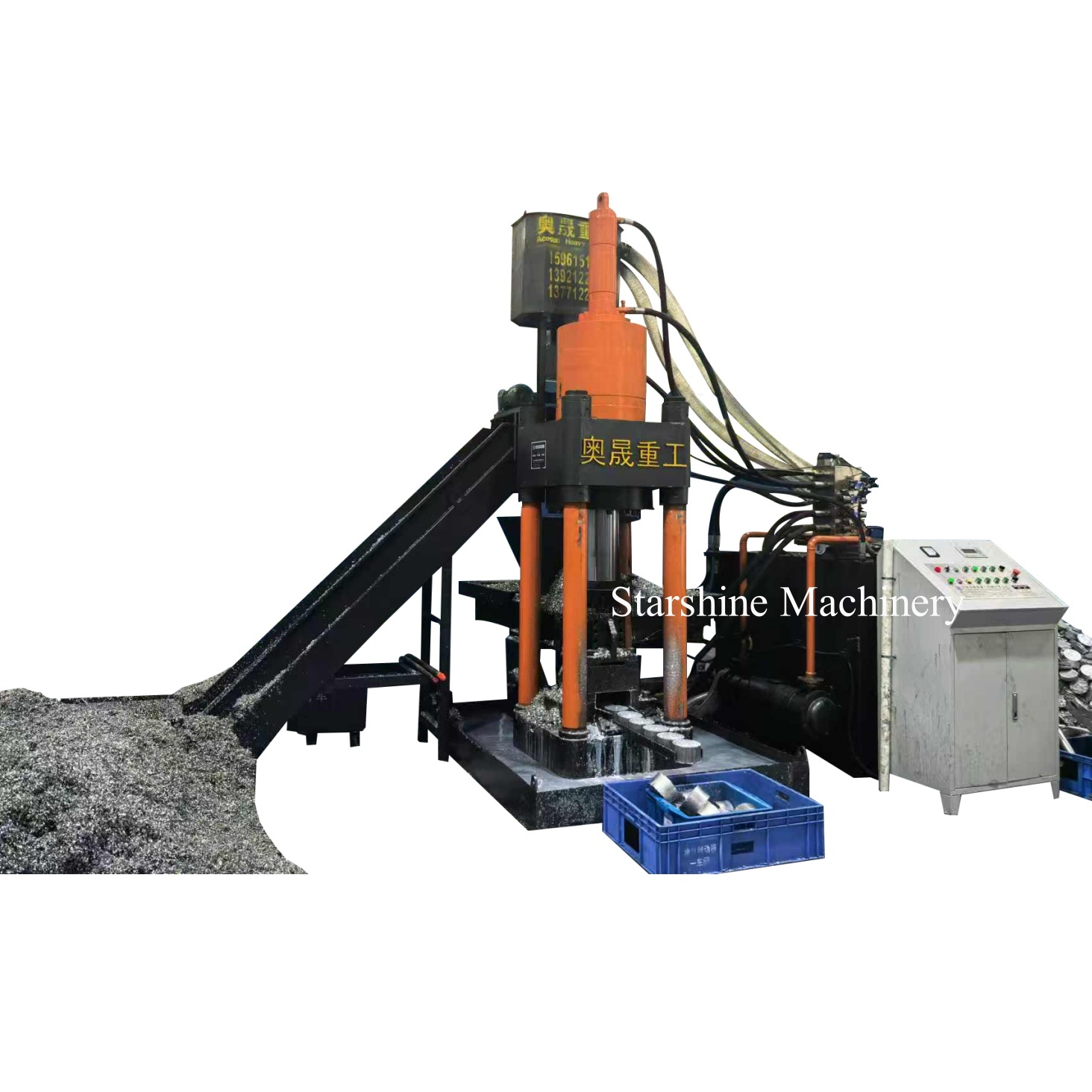

Hydraulic Aluminum Chips Filings Shavings Briquetting Press

Introduction:

Our Y83 serious Hydraulic Briquetting Machine is a kind of equipment to compress metal chips (such as aluminum chips, copper chips, steel chips, etc.) into cake shape. This aluminum chips press is mainly used in metal processing industry, where a large amount of metal chips are generated in processing workshop, foundry and other places. These metal chips, if directly disposed of, not only take up a lot of space, but also are not easy to be transported. The gold chip cake machine can compress the loose metal chips into high-density cake pieces, which is convenient for storage, transportation and recycling.

Working Principle:

This aluminum chip briquetter is generally driven by hydraulic pressure. The hydraulic system conveys hydraulic oil to the cylinder through the oil pump, which generates strong pressure. When the metal chips are placed in the mold cavity, the piston of the cylinder is pushed by the hydraulic oil to squeeze the metal chips. As the pressure increases, the gap between the metal chips gradually decreases, and is eventually compressed into a cake. This way of working ensures that the metal chips are compressed evenly, and the pressure can be adjusted as needed to obtain metal cakes of different densities.Aluminum Extrusion Press

Advantages:

1. Space-saving:

As mentioned earlier, the metal shavings are originally loose and bulky. After compression by the Metal Press, the volume can be greatly reduced. For example, some aluminum chips can be reduced to about 1/3 - 1/5 of their original volume after compression, which greatly saves storage space and makes more efficient use of space, both in the workshop and in the warehouse.metal chip briquetter

2. Convenient transportation:

The compressed metal chip cake has a regular shape and high density, which is more stable during transportation and is not easy to scatter. Compared to loose metal chips, the same weight of metal chips cake takes up less space and can be transported in a correspondingly lower way.briquetting press

3. Conducive to recycling:Metal Briquetting Press

For recycling companies, metal chip cake is easier to melt. Because of its high density, it melts faster during the melting process and allows for better control of the quality and efficiency of the melting process. At the same time, the purity of the metal chip cake is relatively high, which reduces the influence of impurities on the quality of the recovered metal.

Technical Data:

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density(T/m3)	Briquettes/min	Production(T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	7~10	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
