Metal Baler Machine Mobile Scrap Metal Baler

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Gear, Pump

Warranty Period: 1 Year

Machinable Material: Brass / Copper, Alloy, Aluminum, Carbon Steel, Stainless Steel

Core Selling Point: Multifunctional

Out-of-warranty Service: Video Technical Support, Online Support

Applicable Industry: Manufacturing Plant, Food &Amp; Beverage Factory, Construction Works, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Color: Customized

Energy Consumption: Energy Saving and Environmental Protection

Marketing: Factory Directly Supply

Production: 1.5~15tons/Hrs or Customized

Bale Size: Automatically by PLC

PLC Brand: Siemens, Mitsubishi or Customized

Baling Capacity: Widely

Transport Package: Seaworthy

Bale Discharging: Turn-out/Push-out

Application: Brass Alloy Metal Scrap

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 1.5~15tons/Hrs or Customized

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

HS Code: 8422400000

Port: Shanghai port

Product Description

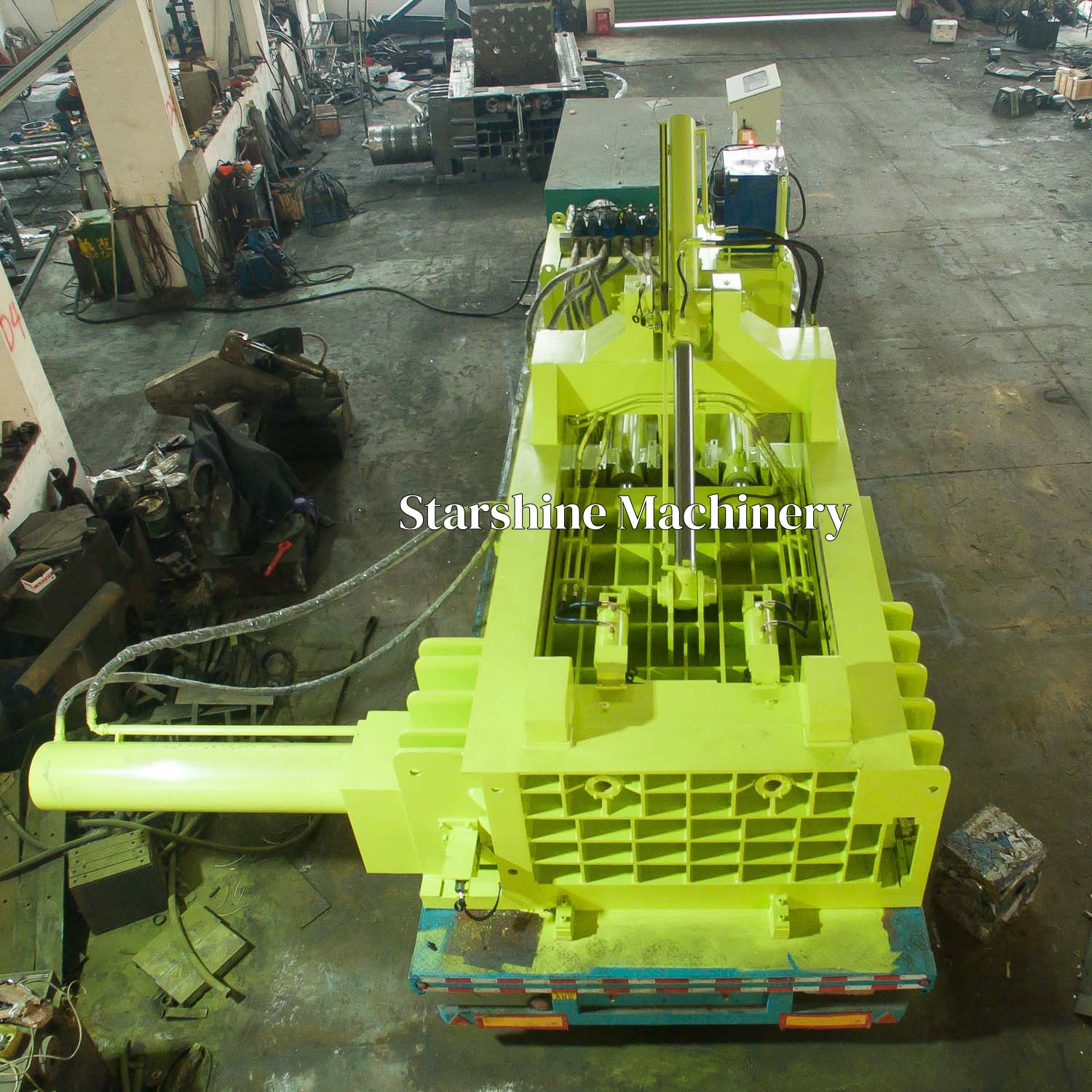

Metal Baler Machine Mobile Scrap Metal Baler

Introduction:

As the key equipment of metal recycling processing industry, Metal Baler plays an irreplaceable role in improving operation efficiency and resource utilization. The scrap metal baler can compress and integrate all kinds of scattered and disorderly metal waste, such as scrap steel and waste aluminum alloy, through strong pressure, and finally pack into regular and compact blocks. The metal bale treated by the Hydraulic Press not only greatly facilitates the subsequent storage and transportation process, reduces logistics costs, but also significantly improves the economic benefits of metal recycling enterprises, so the metal baler has become an indispensable and important equipment in the field of metal recycling.

Structure composition:

1. Fuselage: usually by the left and right side frame, front frame, base and other welding processing combined into a box-type whole, the inner wall of the material box is equipped with protection plate, which is conducive to dressing and replacement after wear.

2. Master cylinder: double acting single piston rod type cylinder, fastened to the right frame of the fuselage, through the sealing ring on the piston to ensure that the oil chamber is sealed, the piston rod is connected with the pressure head, for the main extrusion action.

3. Side cylinder: installed in the lower part of the door beam for secondary compression, so that the material in the compression room is initially formed.

4. Cover cylinder: double acting single piston rod type cylinder drives the fuselage cover plate to rotate and realize the closing and opening of cover.

5. Gate cylinder: double acting single piston rod type cylinder, drive the gate reciprocating movement, control the opening of the feed box.

6. Locking mechanism: It is composed of spring return cylinder and parts connected with the front frame to ensure the repeated completion of closing, locking, opening and other actions.

Equipment features:

1. Strong power: All use hydraulic drive, stable work, safe and reliable, can produce a large extrusion pressure, the metal material compressed into a tight block.

2. Flexible operation: The operation mode of manual or PLC automatic control can be selected according to actual needs.

3. Diverse discharge: there are four kinds of discharge forms: side turning bag, side pushing bag, forward pushing bag or no discharge bag, which is convenient for material handling in different scenarios.

4. Strong adaptability: no need to install foot screws, diesel engine can be used as power in the place without power supply, and can adapt to different working environments.

Usage meaning:

1. Improve recycling efficiency: the finishing, compression and baling of scrap metal can be completed quickly and automatically, which greatly saves resources and time costs and improves recycling efficiency.

2. Promote environmental protection: By pressing scrap metal into compact clumps, reducing the space occupation during storage and transportation, reducing the impact on the environment, while effectively reducing the emission of harmful gases such as carbon dioxide.

Increased economic benefits: The density and quality of the packaged scrap metal increases its price in the market, and it is easy to store and transport, reducing the risk of theft and enabling scrap metal recycling companies to achieve higher profits.

Model	Container size(mm)	Bale size(mm)	Motor power(kw)
Y81-1250	1200700600	250*250	15/22
Y81-1600	16001000800	350*350	22
Y81-2000	180012001000	400*400	30
Y81-2500	250020001000	500*500	22*2
Y81-5000	300025001300	700*700	45*3
Y81-8000	300025001300	700*700	45*4
Y81-10000	350025001300	700*700	45*5

Product Categories : Metal Baler > Mobile Baler
