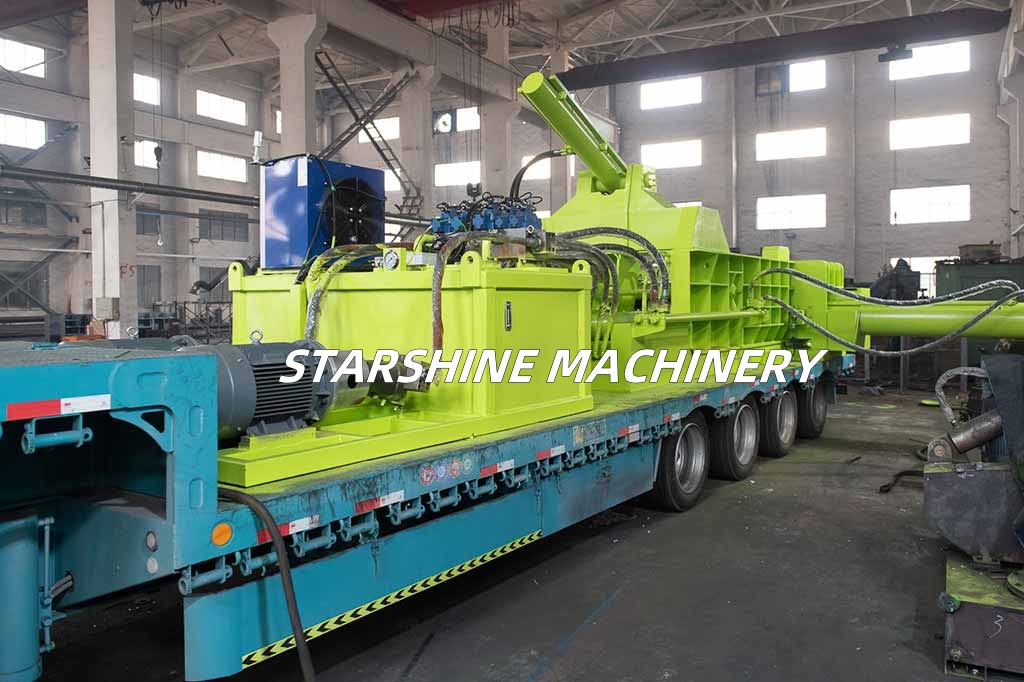

Metal Baler Machine is an efficient equipment integrating hydraulic system, power unit and mobile mechanism, which is mainly used for compressing and baling loose scrap metal materials (such as scrap iron, scrap aluminum, scrap copper, etc.) to form regular metal blocks for easy transportation, storage and recycling. Its “mobile” design breaks through the site limitations of fixed equipment, and is especially suitable for mobile operations at scrap metal recycling sites, construction sites, factory workshops and other scenarios.
1. Hydraulic system: It consists of hydraulic pumps, cylinders, control valves, etc. It provides strong pressure (usually up to tens to hundreds of tons) and is the power core of compression baling.
2. baling box (compression chamber): used to hold scrap metal, depending on the model, the volume ranges from a few cubic meters to a dozen cubic meters, the inner wall is usually made of high-strength steel plate to prevent deformation.
3. Power unit: mostly diesel engine (some of them can be compatible with electric motors), without external power supply, adapting to the outdoor environment without power grid.
4. Mobile mechanism: equipped with tires (solid or pneumatic tires), some large equipment with traction device, can be moved by truck traction, and small equipment can even be carried by forklift.
5. Operation and control system: through the manual valve or PLC control system to realize the compression, return, out of the bag and other actions, some models with remote control function.
After the loose scrap metal is put into the baling box, the hydraulic cylinder drives the press head to squeeze downward (or horizontally), and the material is compressed to the set density by high pressure to form the rectangular or square metal bale, and finally the bale is pushed out by the bale pushing device. The whole process through the hydraulic energy into mechanical energy, to achieve efficient capacity reduction.
Applicable materials range of Scrap Metal Baler：
1. Scrap iron and steel: scrap car shells, scattered scrap steel bars, iron wire, steel plate edges, tin, cans, scrap nails and so on.
2. Non-ferrous metals: scrap aluminum chips, aluminum profile edges, scrap copper wire, copper pipe fragments, scrap lead, etc.
3. Other scattered metals: scrap stainless steel fragments, scrap zinc alloy parts, scrap metal nets, etc.
Main advantages of Hydraulic Press:
1. Mobile and flexible: it can be quickly transferred with the change of the operation site, especially suitable for the scenarios that require door-to-door recycling and multi-point operation (e.g. mobile recycling trucks, on-site treatment at construction sites).
2. High-efficiency capacity reduction: reduce the volume of scrap metal through high-pressure compression, reducing transportation costs (e.g., originally 10 trucks of loose scrap can be reduced to 3-4 trucks after baling).
3. Convenient operation: high degree of automation, some models are equipped with one-button operation, which can be started without professional skills, and the maintenance of is relatively simple.
4. Strong adaptability: diesel or electric motor can be chosen as the power, which can work normally in the outdoor (such as construction sites, suburban recycling points) without power grid, with good environmental compatibility.
5. Enhance safety: the packaged metal blocks are well organized, which reduces the risk of scattering and scratches during transportation, and also facilitates the subsequent feeding of the furnace.
1. Scrap recycling station: on-site baling of recycled loose scrap metal, reducing storage space and improving transportation efficiency.
2. Factory workshop: Handle metal edges and corners generated in the production process, realizing “immediate production and baling” and keeping the workshop neat and tidy.
3. Construction sites: Recycling of waste steel and scrap iron produced by demolition, compressed on-site and directly transferred to avoid secondary handling.
4. Metal processing enterprises: pack metal shavings and scraps produced by lathes and milling machines, so as to facilitate the reuse of them back to the furnace.
| Model | Container size(mm) | Bale size(mm) | Motor power(kw) |
| Y81-1250 | 1200*700*600 | 250*250 | 15/22 |
| Y81-1600 | 1600*1000*800 | 350*350 | 22 |
| Y81-2000 | 1800*1200*1000 | 400*400 | 30 |
| Y81-2500 | 2500*2000*1000 | 500*500 | 22*2 |
| Y81-5000 | 3000*2500*1300 | 700*700 | 45*3 |
| Y81-8000 | 3000*2500*1300 | 700*700 | 45*4 |
| Y81-10000 | 3500*2500*1300 | 700*700 | 45*5 |
