Hydraulic Shear Press Shear Press Machine Metal Shear

Basic Info

Model No.: Customized

Brand: Starshine Machinery

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Gear, Pump

Warranty Period: 1 Year

Type Of Machine: Hydraulic Guillotine Shears

Machinable Material: Brass / Copper, Alloy, Carbon Steel, Aluminum, Stainless Steel

Core Selling Point: High Productivity

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Energy &Amp; Mining

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Warranty: 1 Year

Production Capacity: 10 Sets Per Month

Name: Scrap Metal Baling Cutting Shear

Operation: PLC Control

Blade Length: 700-2000mm

Shearing Force: 400-1250tons

Cooling System: Water or Fans Cooler

Transport Package: Host Nude Packing, Parts in Wooden Cases

Trademark: Starshine Machinery

Loading Box Size: 4000*1500*700mm (Customized)

Additional Info

Packaging: nude packing,film packing,wooden case,container packing,steel wire

Productivity: 10 sets/month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10 sets/month

HS Code: 84629190

Port: Shanghai

Product Description

Hydraulic Shear Press Shear Press Machine Metal Shear Press

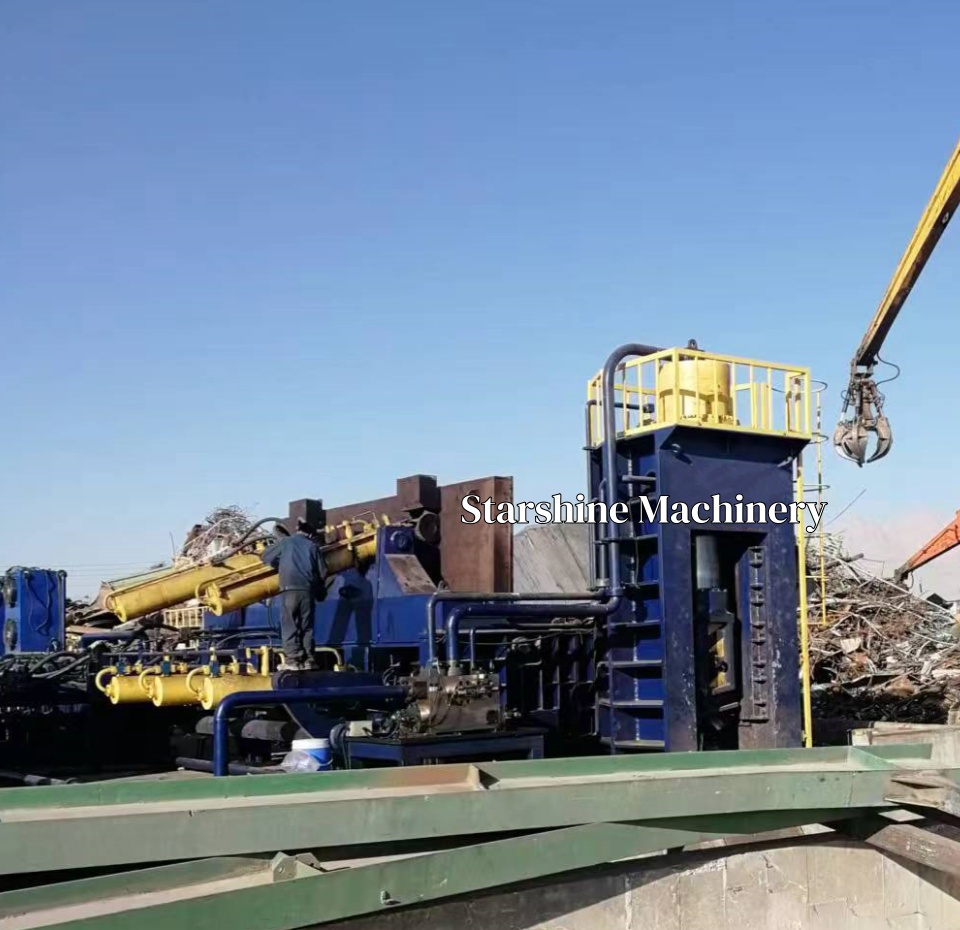

Our hydraulic shear press is suitable for steel mills, recycling companies, ferrous and non-ferrous metal smelting industries to press scrap metal (steel, copper, aluminum, stainless steel, scrap cars), press them into blocks and then cut them.

Structural composition：

1. Fuselage: Usually welded with high-strength steel plates, it has good rigidity and stability, and can withstand great pressure during baling and shearing.

2. Hydraulic system: including hydraulic pump, hydraulic cylinder, hydraulic valve, oil tank and other components. The hydraulic pump provides power, the hydraulic cylinder performs action, the hydraulic valve controls the flow direction and pressure of the hydraulic oil, and the oil tank stores the hydraulic oil and plays the role of heat dissipation and filtration.

3. Baling mechanism: composed of an indenter, a baling chamber, and a push bag device. The indenter compresses the material under hydraulic pressure. The baling chamber is used to contain the material and form a pressed block. The pushing device pushes the pressed block out of the baling chamber.

4. Shearing mechanism: mainly composed of shearing knife, tool holder, drive hydraulic cylinder, etc. The shear knife is installed on the tool holder, and the hydraulic cylinder drives the shear action. The structural design of the tool holder ensures that the shear knife has sufficient strength and accuracy when working.

5. Electrical control system: used to control equipment start, stop, action switching and pressure, speed and other parameters of the adjustment. Through the electrical control system, the operator can precisely control the operation of the equipment according to different working requirements.

Features:

1. Hydraulic drive, PLC control.

2. Bale-discharging: "push-out", equipped with large square metal cutting scissors.

3. Enough pressing space to feed large size waste.

4. Customize feed box size according to different scrap materials.

5. Manufacturer with strict quality control.

Maintenance points：

1. Check the hydraulic system regularly: check the oil level, oil quality and oil temperature of the hydraulic oil. If the oil level is too low, it should be added in time, and the oil quality should be replaced in time to avoid excessive oil temperature affecting the system performance. At the same time, it is necessary to check whether there is leakage in hydraulic pipelines, joints and other parts, if there is leakage, it is necessary to repair or replace the seal in time.

2. Cleaning and lubrication: keep the surface of the equipment clean, remove dust, oil and debris in time. The moving parts of the equipment, such as hydraulic cylinder piston rod, guide rail, bearings, etc., are regularly lubricated to reduce wear and ensure normal operation.

3. Tool maintenance: The shear knife is a fragile part, and the wear of the tool should be checked regularly. When the tool is worn to a certain extent, it needs to be sharpened or replaced to ensure the cutting quality and efficiency. At the same time, during the use of the tool, it is necessary to avoid cutting hard or exceeding the cutting capacity of the equipment to prevent tool damage.

4. Electrical system maintenance: check whether the connection of electrical components is firm, whether there is loosening, burning and other phenomena. Clean the dust in the electrical control cabinet regularly to prevent dust accumulation from affecting heat dissipation and causing electrical faults. At the same time, check whether the parameter Settings of the control system are correct, and adjust in time if there is an exception.

Model	Shearing force	Blade length (mm)	Feed box size (mm)	Shearing frequency	Motor


YDJ-4000	400	500	30001200600	~3	90
YDJ-5000	500	700	40001500700	~3	135
YDJ-6300	630	710	52002000800	3~4	180
YDJ-8000	800	800	52002000800	3~4	225
YDJ-10000	1000	810	55002200900	3~4	270
