Metal Scrap Press Machine Iron Press DRI Press

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

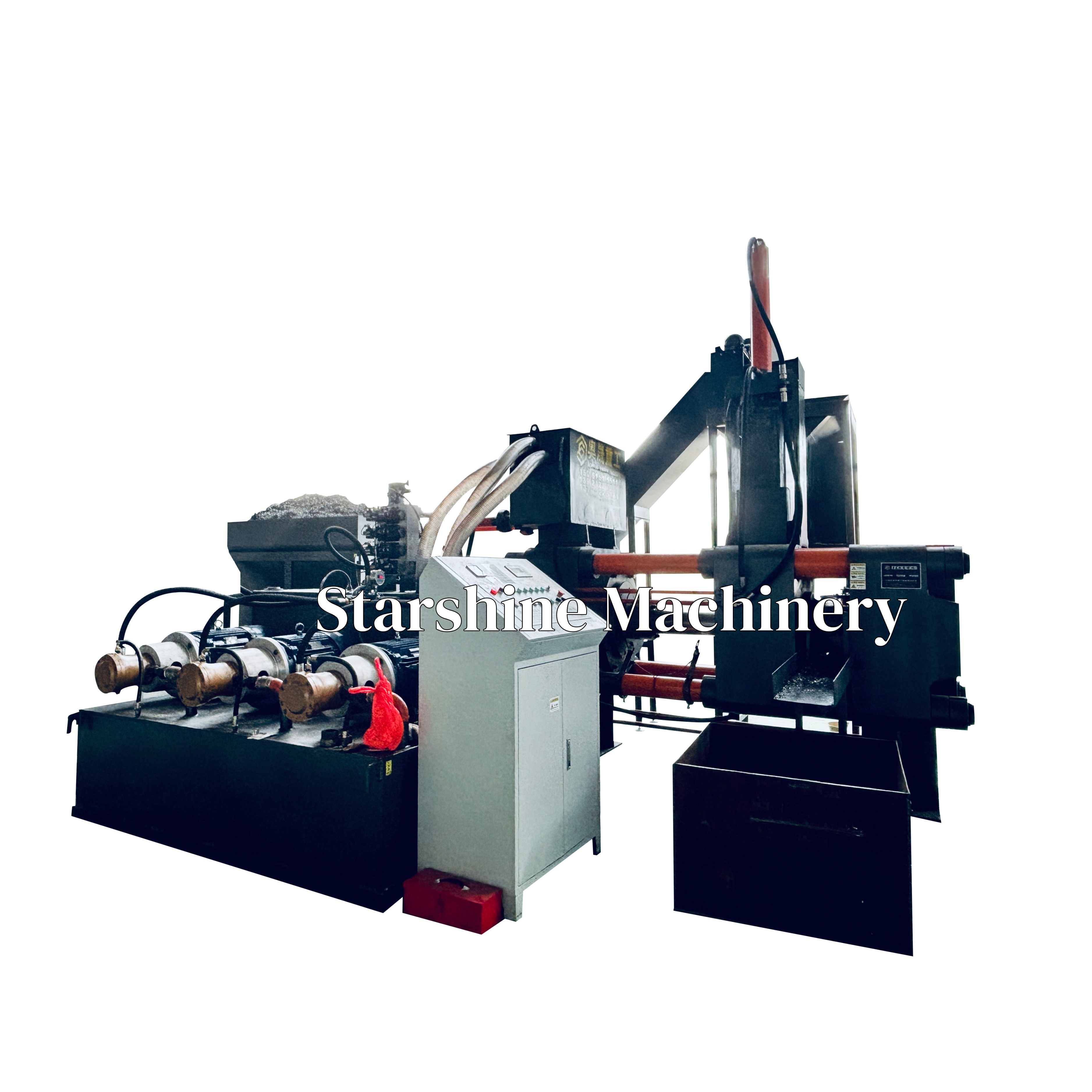

Metal Scrap Press Machine Iron Press Machine DRI Press

Introduction:

Our Y83 series Hydraulic Press is mainly used for cold pressing powder or granular copper chips, aluminum chips, cast iron chips, ball milling cast iron chips, sponge iron, steel chips, iron ore powder, silicon powder, slag powder and other non-ferrous metal chips into cylindrical cakes weighing 2.5~10kg, without any additives, large automatic chip parallel machine suitable for large amount of metal chips enterprises, large foundry, wind power parts casting enterprises, Copper and aluminum products production enterprise customers buy.

Metal cake press features:

1. Machine structure, simple, economic and practical.Sponge Iron Press

2. The hydraulic control action is reliable, the service life is long, the hydraulic impact is small, and the connection pipeline and leakage point are reduced.

3. Electrical control system, reliable work, objective action, easy maintenance.Iron Sponge Press

4. Adopt button centralized control, with adjustment, manual and semi-automatic three modes of operation.Sponge Iron Compressor

5. Through the selection of the operation panel, the two forming processes of fixed range and fixed pressure can be realized, and the functions of pressure preservation can be provided.

6. The working pressure of the slider, the travel range of no-load fast down and slow working can be adjusted according to the process needs.

Working principle:

The loose material is added to the large hopper above the charging cylinder.The oil is injected into the rear cavity of the charging cylinder, and the piston rod is extended and reset, and then the oil is injected into the rear cavity of the sub-cylinder, driving the piston rod and punch of the master cylinder to press down quickly. When the punch enters the die cavity, the rear cavity of the master cylinder enters the pressure oil, and the master cylinder begins to attack and compress the material to form a chip cake. After the pressure is maintained, the master cylinder is slightly retreated, the oil is injected into the rear cavity of the auxiliary cylinder, and the piston rod is retreated, driving the pumping block to the position where the cake block can be removed.The master cylinder continues to fall, and after the pressed cake is pressed out of the mold cavity, the front cavity of the auxiliary cylinder is fed with oil, and the piston rod is extended, driving the pumping block to push the cake out of the cake block and reset at the same time.The oil is fed into the front chamber of the rear sub-cylinder, which drives the piston rod and punch of the master cylinder to rise and reset, completes the process of a pressure cake cycle, and enters the next cycle program.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
