Iron Compactor metal Shaving Machine Iron Scrap Recycling

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

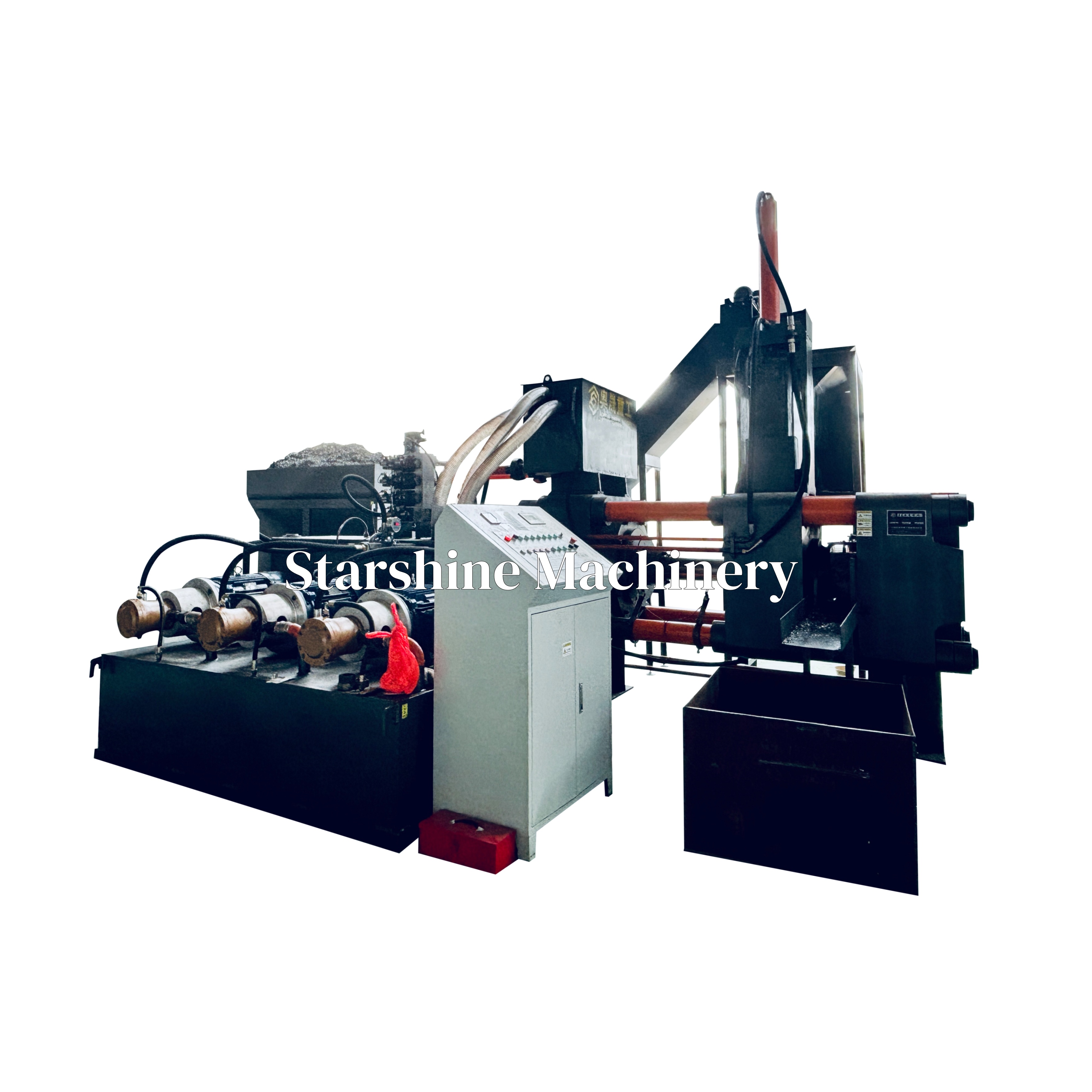

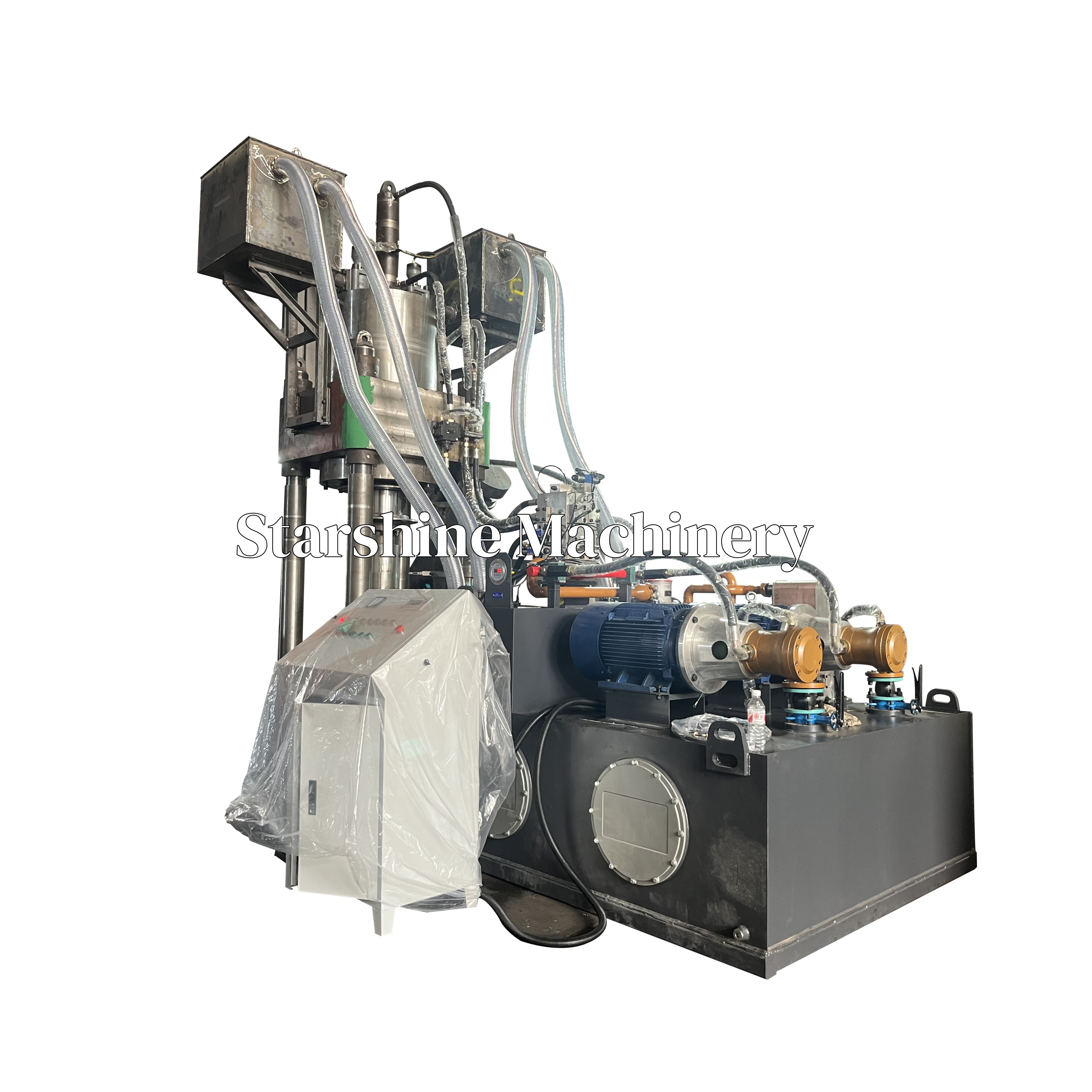

Iron Compactor metal Shaving Machine Iron Scrap Recycling

Working principle：

Usually, the strong pressure generated by the hydraulic system is used to force the cast iron chips into a specific mold cavity. The motor drives the hydraulic pump, the hydraulic oil circulates in the system, pushes the piston of the hydraulic cylinder, the piston drives the indenter to exert pressure on the cast iron filings, and after a certain period of pressure retention, the loose cast iron filings are pressed into cakes with a certain density and shape, so as to facilitate subsequent processing and recycling.

Structural composition：

1. Hydraulic system: It is the power source of the cast iron chip Metal Press, including hydraulic pump, hydraulic cylinder, hydraulic valve, oil tank and other components. Through the hydraulic oil pressure transfer, the compression action of cast iron filings is realized.

2. Pressing mechanism: Mainly composed of indenter, die, die cavity, etc. Under the push of the hydraulic cylinder, the indenter presses the cast iron chips into the mold cavity to form a briquette. The size and shape of the mold are customized according to the production needs to meet the production requirements of different specifications of cast iron chip briquette.

3. Feeding mechanism: Responsible for conveying the cast iron filings to the die cavity of the pressing mechanism. Common feeding methods include screw feeding, belt feeding, etc., through the precise control of the feeding mechanism, to ensure that the amount of each feeding is uniform and stable, to ensure the quality of the pressed cast iron chip briquette is consistent.

4. Electrical control system: It is used to control the operation of the entire equipment, including the start and stop of the motor, the pressure regulation of the hydraulic system, the speed control of the feeding mechanism, etc. The operator can set various parameters through the control panel to realize the automatic operation of the equipment.

Application fields：

1. Foundry: A large number of cast iron chips will be produced during the casting process, which can be directly returned to the furnace for re-melting after being pressed into a briquette by the Metal Briguette Machine, so as to realize the recycling of resources and reduce production costs.

2. Metal recycling enterprises: After the recycled cast iron scraps are pressed by the Metal Chips Briguetting Machine, it is easy to classify and store and transport, which improves the recovery efficiency and economic benefits. At the same time, the pressed cast-iron chip briquette can better cooperate with other charges in the smelting process to improve the smelting quality.

3. Machining workshop: The cast iron chips generated in the machining process can be processed in time by the cast iron briquetting press, reducing the waste accumulation in the workshop, keeping the working environment clean, but also easy to centralized management and recycling.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
