Metal Pressing Steel Recycling Steel Compactor Briquetting

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

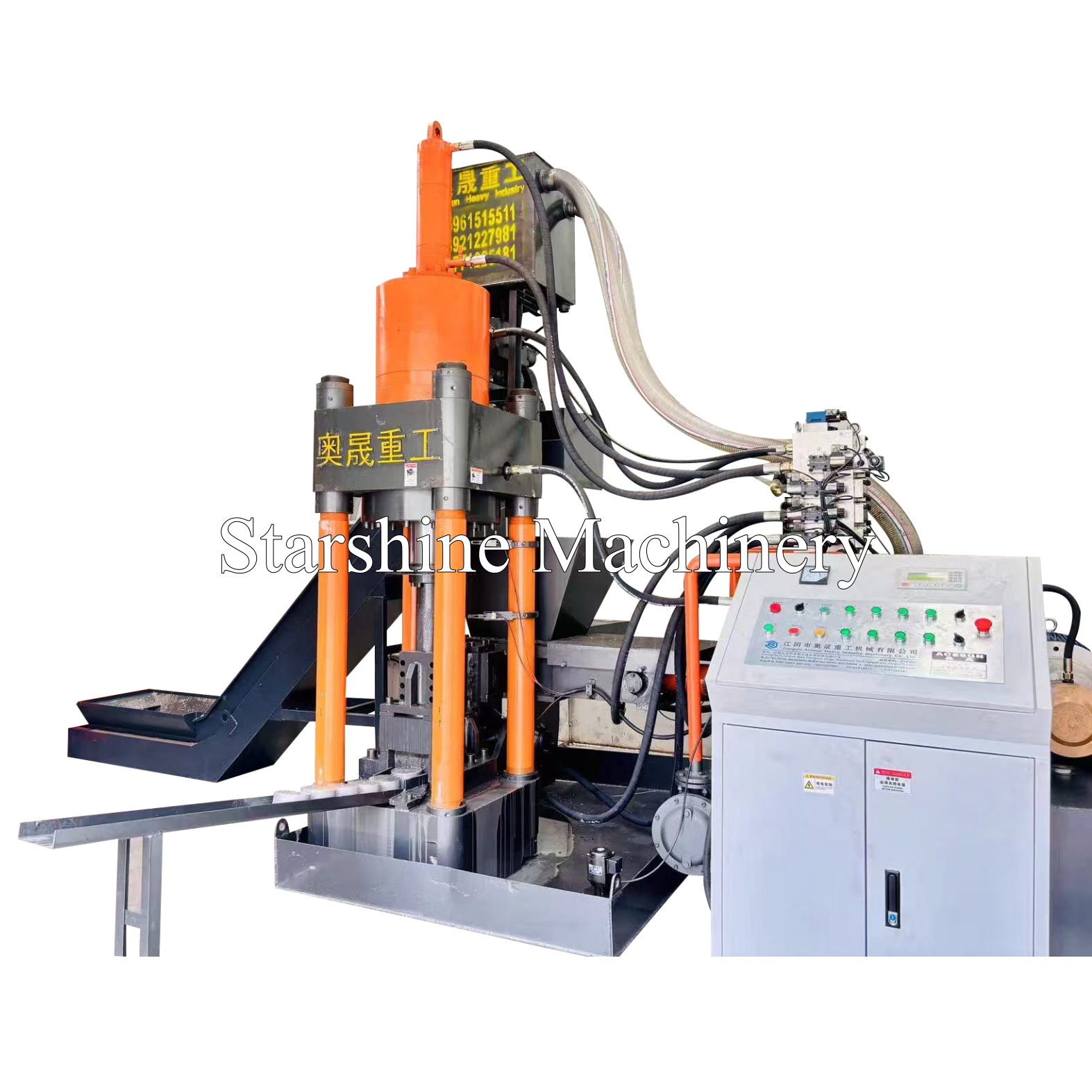

Metal Pressing Steel Recycling Steel Compactor Briquetting

Introduction：

Metal Briquetting Press is mainly used to press powder or granular copper shavings, aluminum shavings, steel shavings, cast iron shavings, ball milling cast iron shavings, sponge iron, iron ore powder, silicon powder, slag powder and smaller metal shavings such as aluminum shavings, steel shavings, iron shavings, copper shavings and other metal wastes into cylindrical cakes of different sizes and weights, without any additives. Can easily solve the problem of space storage of loose materials, suitable for large and small metal processing enterprises.

Features:

1. Machine structure, simple, economic, practical, easy to operate.Stainless Steel Press

2. The hydraulic control operation is reliable, the maintenance is simple, the service life is long, the hydraulic impact is small, the connection pipe and the leakage point are reduced.

3. Electrical control system, reliable work, objective action, easy maintenance.Metal Briguette Machine

4. Adopt button centralized control, with adjustment, manual and semi-automatic three modes of operation.Metal Pressing

5. Through the selection of the operation panel, the two forming processes of fixed range and fixed pressure can be realized, and the functions of pressure preservation can be provided.Metal Press

6. The working pressure of the slider, the travel range of no-load fast down and slow working can be adjusted according to the process needs.Steel Press

Details：

1. The upper and lower beams and sliders of the main machine are cast steel parts, which can be used for a long time without deformation or damage; The surface of the column is plated with hard chromium, wear-resistant and non-rusting.

2. Hydraulic system adopts optimized hydraulic system, no hydraulic shock during operation; Choose high-quality hydraulic components to improve the service life of the equipment; High-pressure tubing prevents oil leakage.

3. The electrical system uses PLC programmable controller to control the operation of the equipment through the button; Adjust the technical parameters through the LCD screen according to the equipment working situation.

4. Modes accept High quality wear-resistant steel, processed by special technology, not only high precision, but also wear-resistant; Part of the wear can be removed to reduce replacement costs.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45

Usually,Screw feeder is a good partner of chip cake machine, usually our customers will be matched to use, convenient operation at the same time to improve efficiency, effectively improve production capacity.

If you need,you can clikck the picture below for more details.
