Mill Scale Iron Compactor Compressor Hydraulic Press

Basic Info

Model No.: Customized

Brand: Starshine

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Hot Product 2019

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Motor, Pressure Vessel, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Multifunctional

Applicable Industry: Manufacturing Plant, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Production: 2.5~4.5tons/Hrs

Certification: GMA, QS, FDA, ISO, CE

Briquette Dia.: 200 mm or Customized

Energy Consumption: Energy Saving and Environmental Protection

Operation Mode: Automatically by PLC

Screw Feeding: As Per Customer Required

Usage: Briquetting

Customized: Logo Color Packing

Specification: Customized

Production Capacity: 300 sets/year

Additional Info

Packaging: wooden case,wire locking,plastic film,nude packing

Productivity: 2.5~4.5tons/Hrs

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 300 sets/year

Port: Shanghai port

Product Description

Mill Scale Iron Compactor Compressor Hydraulic Press

Working Principle:

Through the way of high pressure direct cold pressing, the cast iron, steel, copper, aluminum and other metal raw materials and high-quality mineral powder, without adding any additives, pressed into cylinder or other shapes of briquettes with different weight.

Component Composition:

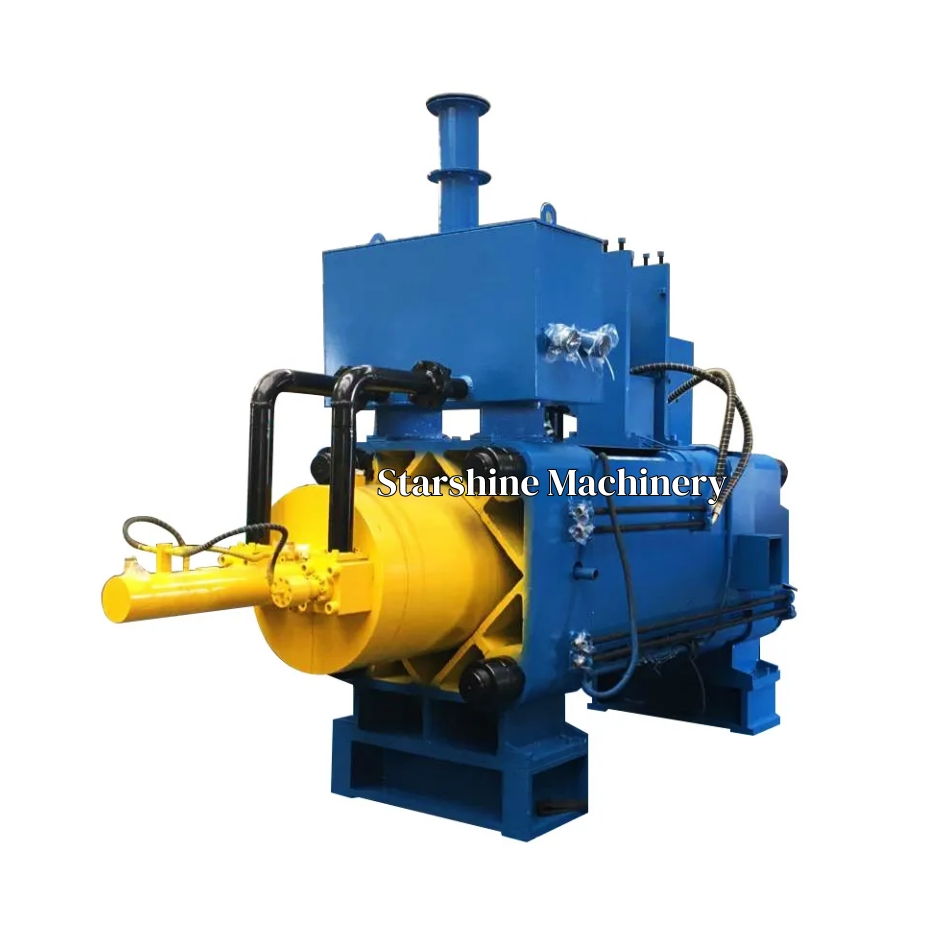

1. Main machine: composed of frame, main hydraulic cylinder, push hydraulic cylinder, bottom hydraulic cylinder, supporting mold frame and die, press and so on. The frame is composed of upper and lower beams and columns, which are all made of monolithic steel castings and connected by four columns with internal and external nuts to withstand working tension.Oxide Scale Press

2. Hydraulic station: composed of motor, hydraulic pump, pump protection device, professional control valve block and pipe system connecting block press, reasonable design, stable quality, equipped with cooling system, avoid equipment due to oil temperature overheating and can not work continuously.

3. Console: composed of electrical system and PLC control system, equipped with adjustable text display, action sequence and each action time are completely controlled by PLC system, and can be adjusted by the operator at any time, convenient, easy to understand.Forge Scale Press

4. Model classification: divided into vertical model and horizontal model two forms. Vertical models have a relatively small footprint, but may be slightly less convenient in feeding and discharging; Horizontal models are more advantageous in handling large volumes of metal chips and are easy to install and maintain.

Product Features:

1. Reasonable structure design: the body adopts the whole steel structure, high strength, good stability, no need to install anchor screws. The frame part adopts integral cast steel parts, which improves the reliable stability and service life of the equipment.Metal Briquetting Press

2. Advanced hydraulic system: hydraulic transmission, highly professional integral valve block, large flow path, so that the system pressure loss is less, eliminate leakage disadvantages. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design enable the hydraulic system to operate stably even under long-term heavy load.

3. High degree of automation: the electrical part adopts imported PLC automatic control system, strong anti-interference ability and low failure rate. Equipped with adjustable text display, action sequence and each action time can be adjusted by the operator at any time, easy to operate.

4. High production efficiency: The cylinder adopts series type cylinder, which improves the speed of movement and production efficiency. Some equipment can also be equipped with spiral automatic feeder, chain automatic feeder, etc., to reduce the labor intensity of workers.

Application:

Widely used in metal smelting, waste recycling, waste reuse, metal processing and other industries. All kinds of metal chips can be compressed into high-density blocks, direct furnace smelting, greatly reducing the cost, but also contribute to the recycling of resources, reduce the demand for primary metal mining.

Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Model	Inner dia.of main cylinder	Briquette size (mm)	Briquette density (T/m3)	Briquettes/min	Production (T/shift)	Power(kw)	Operational mode
Y83-2000	280	φ80×(60-80)	≥5	4~5	3~5.5	18.5	PLC automatically
Y83-2500	320	φ90×(60-80)	≥5	4~5	5~8	30
Y83-3150	360	(φ90~φ110)×(70-100)	≥5.5	4~5	5~8	30
Y83-3600	400	(φ100~φ120)×(70-100)	≥5	4~5	8~12	30
Y83-5000	450	(φ110-φ140)×(70-100)	≥5	4~5	10~14	37
Y83-6300	520	(φ130-φ160)×(70-100)	≥5	4~5	16~20	45
